Kia Cadenza YG: MTS System / Components and Components Location

Components

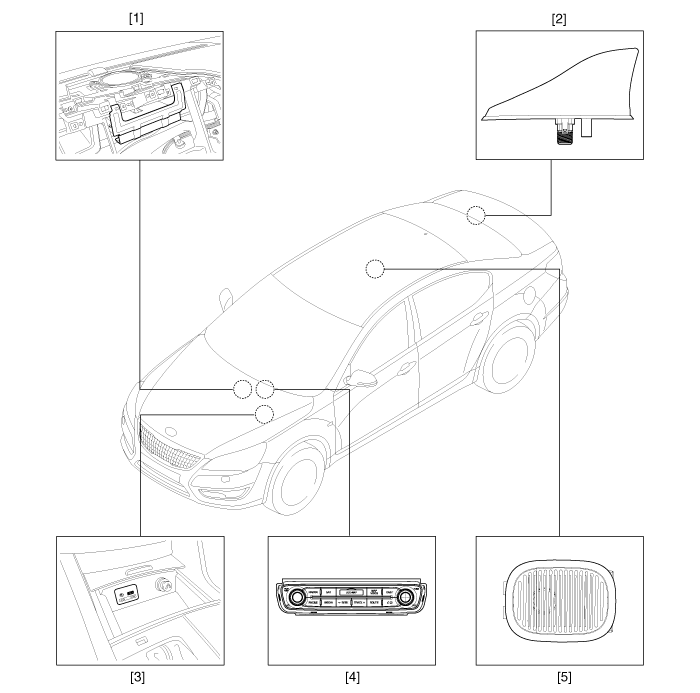

1. Telematics unit (TMU)
2. Roof Antenna
3. AUX jack
4. AVN head unit
5. Mic

    Description The Vehicle Information System is a Telematics service that ensures comfortable and enjoyable driving by providing safety, security, and vehicle diagnostic information, with the option of using your smartphone.
