Kia Cadenza: Cooling System / Components and Components Location

Kia Cadenza YG 2016-2023 Service Manual / Engine Mechanical System / Cooling System / Components and Components Location

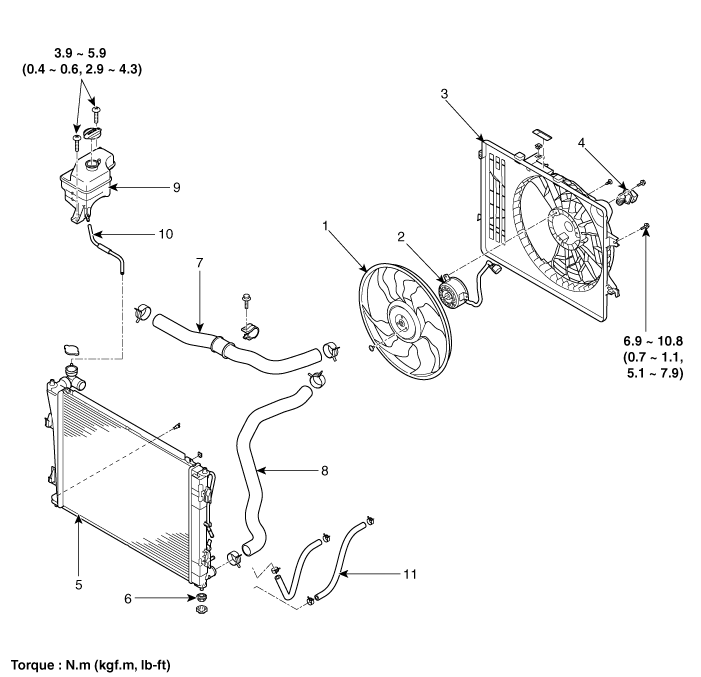

Components

1. Cooling fan
2. Cooling fan motor
3. Cooling fan shroud
4. Resistor
5. Radiator assembly
6. Mounting insulator
7. Radiator upper hose
8. Radiator lower hose
9. Reservoir tank
10. Over flow hose
11. ATF cooler hose
