Kia Cadenza: Lane Departure Warning System (LDWS) / Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Lane Departure Warning System (LDWS) / Components and Components Location

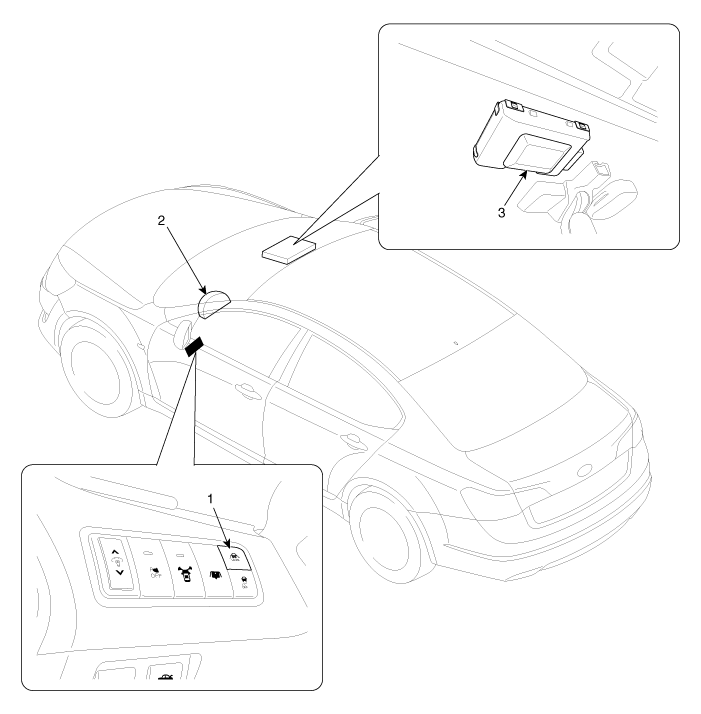

Components

1. LDWS ON/OFF Switch
2. Instrument Cluster
3. LDWS Unit & Camera Module
