Kia Cadenza: Maintenance / Engine compartment

Kia Cadenza YG 2016-2023 Owners Manual / Maintenance / Engine compartment

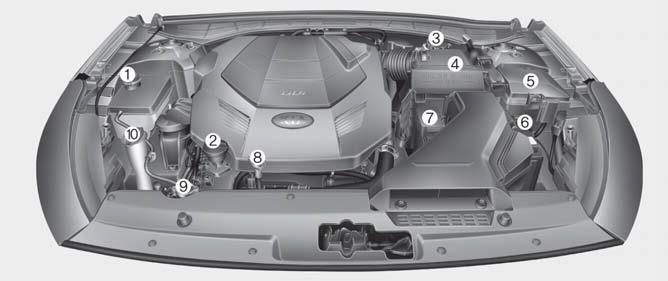

■ Lambda II 3.3L GDI (Gasoline engine)

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10.Windshield washer fluid reservoir
