Kia Cadenza: Your vehicle at a glance / Exterior overview

Kia Cadenza YG 2016-2025 Owners Manual / Your vehicle at a glance / Exterior overview

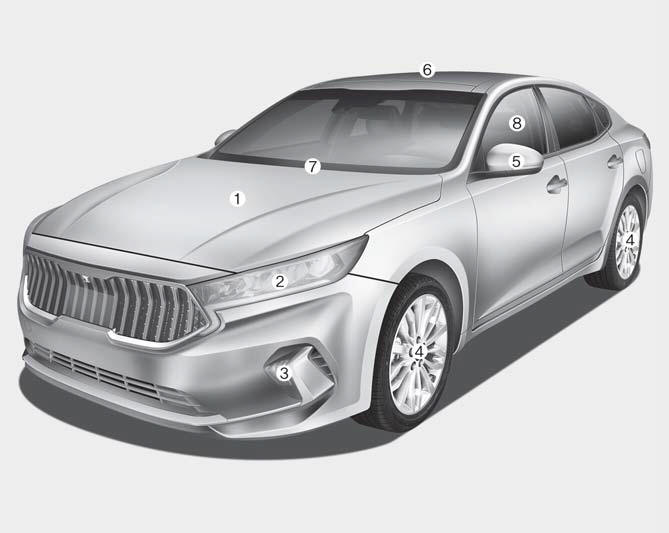

■ Front view

1. Hood
2. Head lamp (Features of your vehicle)
Head lamp (Maintenance)
3. Front turn signal lamp (Maintenance)
4. Wheel and tire (Maintenance)
Wheel and tire (Specification)
5. Outside rearview mirror
6. Panorama sunroof
7. Front windshield wiper blades (Features of your vehicle)
Front windshield wiper blades (Maintenance)
8. Windows

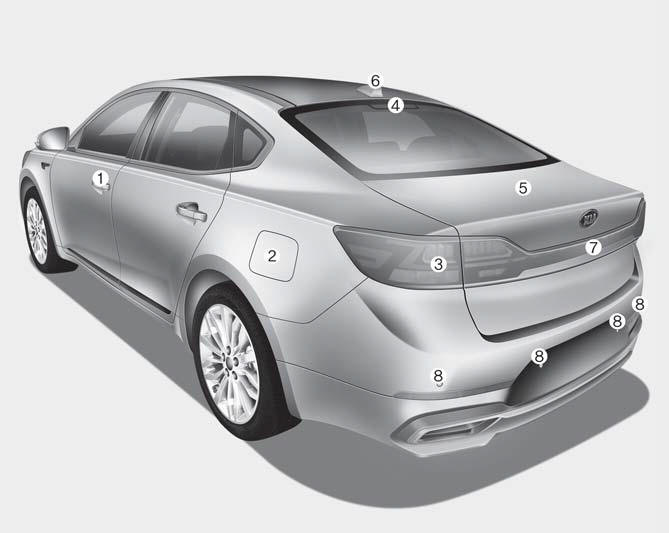

■ Rear view

1. Door
2. Fuel filler door
3. Rear combination lamp (Maintenance)
4. High mounted stop lamp (Maintenance)
5. Trunk
6. Antenna
7. Rear view camera
8. Rear ultrasonic sensors
