Kia Cadenza: Seat & Power Seat / Front Seat Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Body (Interior and Exterior) / Seat & Power Seat / Front Seat Components and Components Location

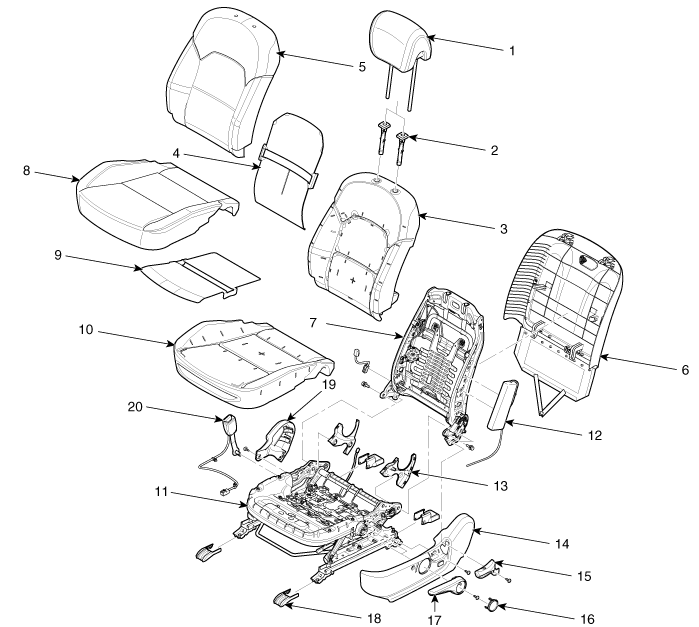

Components

1. Headrest
2. Headrest guide
3. Front seat back pad
4. Front seat back warmer
5.Front seat back cover
6. Front seat back board
7. Front seat back frame
8. Front seat cushion cover
9. Front seat cushion warmer
10. Front seat cushion pad
11. Front seat cushion frame
12. Front seat back side airbag
13. Inside cover
14. Front seat outer shield cover
15. Front seat recliner knob
16. Front seat hight knob cap
17. Front seat hight knob
18. Front seat cover
19. Front seat inner shield cover
20. Front seat buckle
