Kia Cadenza YG: Blower / Climate Control Air Filtar Repair procedures
| Replacement |
| 1. |

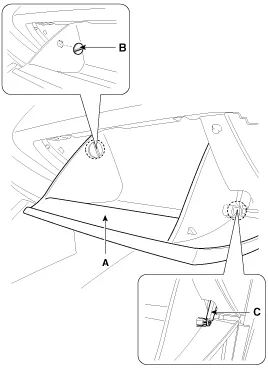

Disconnect the damper (B) from the glove box (A) and then remove the glove box lift (C).
|
| 2. |
Remove the filter cover (A) with pushing the knob.
|
| 3. |
Replace the air filter (B), install it after making sure of the direction of air filter.
|
| 4. |
Installation is the reverse order of removal.
|
Description This has particle filter which eliminates foreign materials and odor. The particle filter includes odor filter as well as conventional dust filter to ensure comfortable interior environment.
Component Location
