Kia Cadenza: Outside rearview mirror / Reverse parking aid function
![](images/reverse_parking_aid_function-1014/904/pages.39(1).jpg)

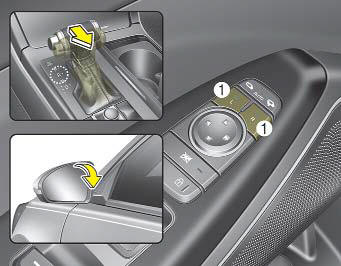

While the vehicle is moving in
reverse, the outside rearview mirror(
s) will move downward to aid
reverse parking. According to the
position of the outside rearview mirror
switch (1), the outside rearview
mirror(s) will operate as follows:
L/R : When the remote control outside
rearview mirror switch (1) is
selected to the L (left) or R (right)
position, both outside rearview
mirrors will move downward.
Neutral : When neither switch is
selected, the outside
rearview mirror will not
move.
The outside rearview mirrors will automatically
revert to their original positions
under the following conditions:
1. The ENGINE START/STOP button
is in the OFF position.
2. Shift lever is moved to any position
except R (Reverse).
3. Remote control outside rearview
mirror switch is placed in the middle
position.
CAUTION
If outside rearview mirror is
positioned at the outermost
(left/right/bottom), the automatic
mirror control function may
not properly work while vehicle
move backward.
The electric remote control mirror
switch allows you to adjust the position
of the left and right outside
rearview mirrors. To adjust the position
of either mirror, press the R or L
button ...
Electric type
The outside rearview mirror can be
folded or unfolded by pressing the
switch as below.
Left (1) : The mirror will unfold.
Right (2) : The mirror will fold.
Center (AUTO) :
Th ...
