Kia Cadenza YG: Cruise Control System / Schematic Diagrams
Kia Cadenza YG 2016-2021 Service Manual / Engine Electrical System / Cruise Control System / Schematic Diagrams

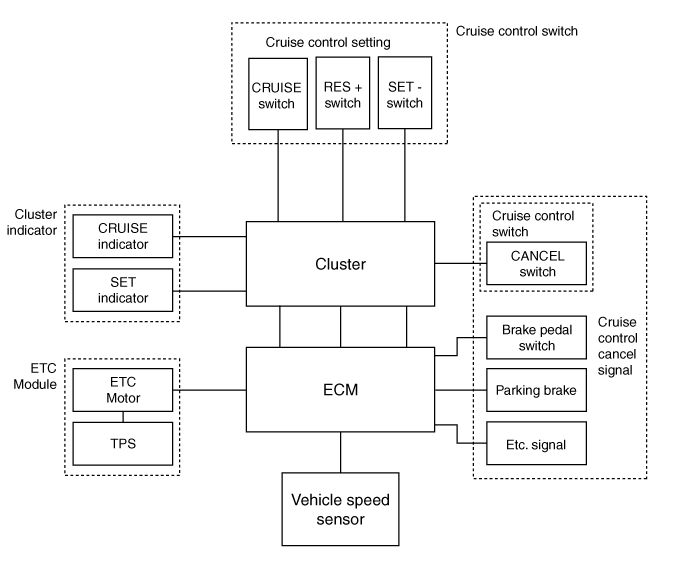

| System Block Diagram |
Component Parts And Function Outline
| Component part | Function | |
| Vehicle-speed sensor | Converts vehicle speed to pulse. | |
| ECM | Receives signals from sensor and control switches. | |
| Cruise control indicator | Illuminate when CRUISE main switch is ON (Built into cluster) | |
| Cruise Control switches | CRUISE switch | Switch for automatic speed control power supply. |
| RES+ switch | Controls automatic speed control functions by Resume/Accel switch (Set/Coast switch) | |
| SET- switch | ||
| Cancel switches | Cancel switch | Sends cancel signals to ECM. |
| Brake-pedal switch | ||
| Transaxle range switch (A/T) | ||
| ETC motor | Regulates the throttle valve to the set opening by ECM. | |
* ETC : Electronic Throttle Control
Cruise Control The cruise control system is engaged by the cruise "ON/OFF" main switch located on right of steering wheel column. The system has the capability to cruise, coast, accelerate and resume speed.
