Kia Cadenza: Navigation-Based Smart Cruise Control
(NSCC) / System Setting and Operation
System setting
- With the Engine Start/Stop button
in the ON or START position,
Navigation-based Smart Cruise
Control can be activated by selecting
'Driver Assistance → Driving
Assist → Highway Auto Curve
Slowdown' from the Vehicle mode
on the infotainment system. For
detailed information, please refer
to the infotainment system manual
separately supplied.
- If the engine is turned off then on
again, the system maintains the
last setting.
Operating conditions
Select 'Highway Auto Curve
Slowdown‘ from the Settings menu in
the infotainment system screen and
satisfy the following conditions for
the system to operate.
- Driving on the highway main line
- Smart Cruise Control is operating
If all the mentioned conditions are
satisfied, the system is ENABLED
and the 'AUTO' symbol on the cluster
will illuminate white.
System operation

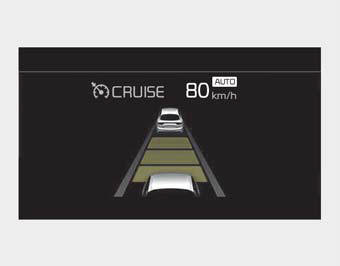

System standby
If the system is ENABLED, the
'AUTO' symbol on the cluster will illuminate
white.

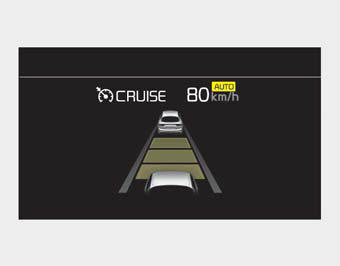

System in operation
If the vehicle decelerates in a curve,
the 'AUTO' symbol on the cluster will
illuminate green.
- This system works only for curved
sections located on highway main
lines.
- Depending on the curve ahead on
the road, the vehicle will decelerate,
and after passing curve, the
vehicle will accelerate to Smart
Cruise Control set speed.
- The higher the driving speed, the
faster the vehicle is decelerated.
- The system responds to curves
located on the destination set in
the navigation. If the destination is
not set, the system will respond to
road information of the expected
route.
✽ NOTICE
- Navigation-based Smart Cruise
Control is limited in other countries.
- The system may not operate due to
the existence of leading vehicles
and the driving situations of the
vehicle.
- The system operates regardless of
whether the sharp curve warning
appears on the navigation, but the
time gap could occur between the
warning and system operation.
- The navigation only provides
curve information within permitted
speed ranges so that the system
may not decrease its speed during
extreme over speed driving.
- The system is not designed to work
on highways other than mentioned
as a controlled access road.
- The system automatically cancels
when you leave the highway
- Highway Driving Assist and
Navigation-based Smart Cruise
Control uses the same “AUTO”
symbol that indicates the status of
the system. Therefore, even if
Navigation-based Cruise Control
is off, the “AUTO” symbol may be
displayed.
- If there is a problem with
Navigation based Smart Cruise
Control, the system cannot be activated
in the AVN system screen,
and the “AUTO” symbol will turn
off. However, if Highway Driving
Assist is activated, the “AUTO”
symbol will be displayed.
- After you pass through a tollgate
on a highway, the system operates
based on the first lane. If you enter
one of the other lanes, the system
might not properly decelerate.
- If you over speed, the system may
not decelerate the vehicle in a
curve.
- Deceleration by the system may
not be sufficient if the driver accelerates
while the system is operating,
- Deceleration by the system may
not be sufficient due to road conditions
such as uneven road surfaces,
narrow lanes, etc.
- If the road is controlled, due to
construction or holiday events, the
system might not work properly.
✽ NOTICE
Navigation-based Cruise Control
may not function properly in the following
situations :
- The navigation is not working
properly.
- The navigation is not updated.
- The real-time GPS or map information
provided has errors.
- The navigation is overloaded by
performing functions such as
route search, video playback,
voice recognition, etc. are performing
simultaneously.
- GPS signals are blocked in areas
such as a tunnel.
- The driver goes off course or the
route to the destination is changed
or canceled by resetting the navigation.
- The vehicle enters a service station
or rest area.
- A section of the highway’s shape
has changed.
- Android Auto or Car Play is operating.
- The navigation cannot detect the
current vehicle position (ex: elevated
roads including overpass
adjacent to general roads or nearby
roads exist in a parallel way).
- The navigation is being updated
while driving.
- The navigation is being reset while
driving.
- The road is slippery due to bad
weather such as rain or snow.
This device complies with Part 15
of the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference
received, including interference
that may cause undesired
operation.
3. Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the device.
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
This equipment should be installed
and operated with a minimum distance
of 8 in (20 cm) between the
radio (antenna) and your body.
This transmitter must not be colocated
or operating in conjunction with
any other antenna or transmitter.
