Kia Cadenza YG: Tire Pressure Monitoring System / TPMS Receiver Repair procedures

Kia Cadenza YG 2016-2021 Service Manual / Suspension System / Tire Pressure Monitoring System / TPMS Receiver Repair procedures

Replacement
1.
Disconnect the negative (-) battery cable.
2.
Remove the glove box housing.
(Refer to Body - "Glove Box Housing")
3.
Disconnect the connector.
4.
Remove the bracket and receiver (A) as loosen the nut.
Tightening torque :
3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3lb-ft)

5.
Install in the reverse order of removal.
6.
Re-connect battery and turn Ignition on.

Firmly fasten the receiver connector until you hear a click.
Be careful not to damage any parts when moving or loading them.
7.
Replace the receiver, and then perform the learning process using a diagnostic instrument (GDS).

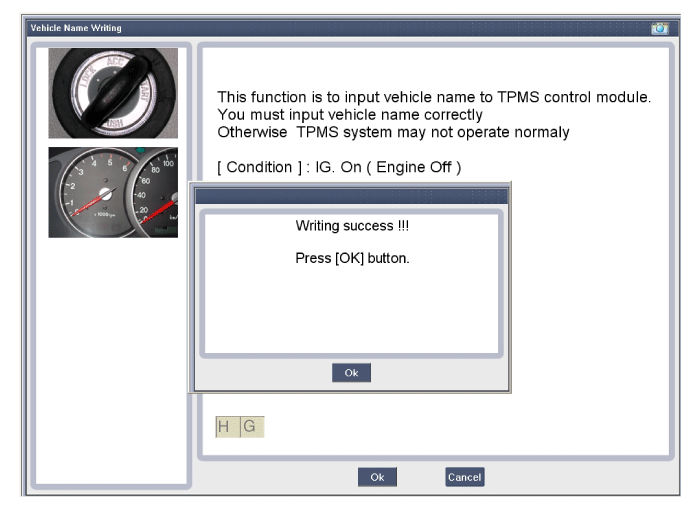

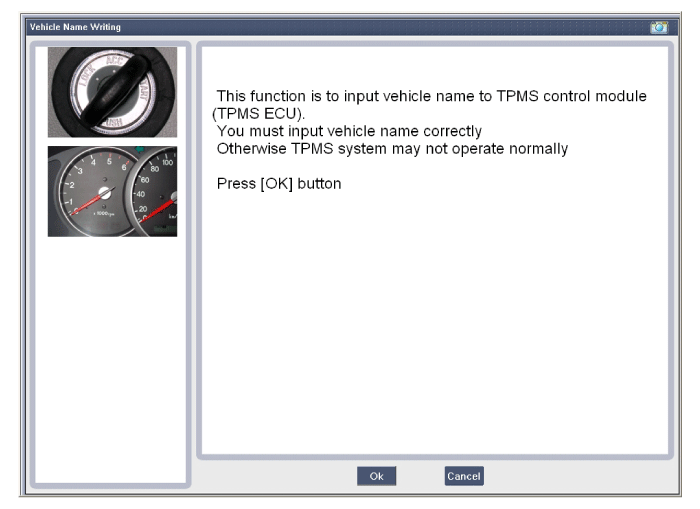

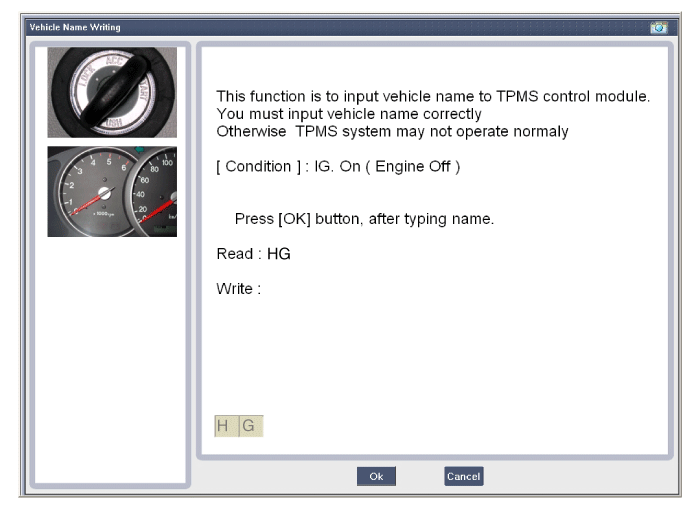

Vechicle Name Writing

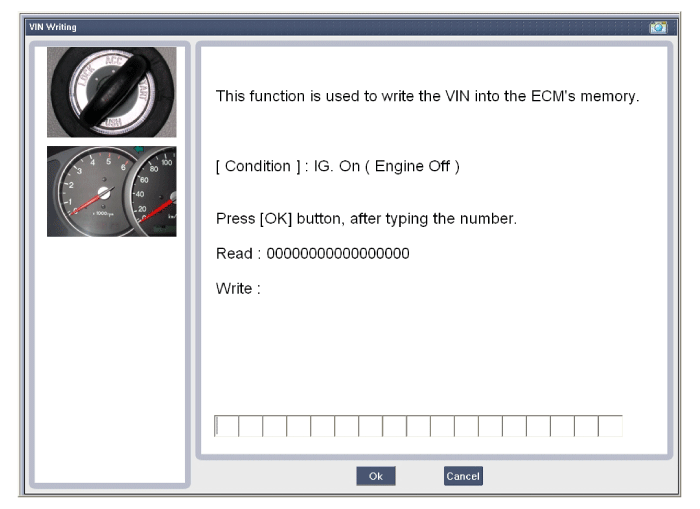

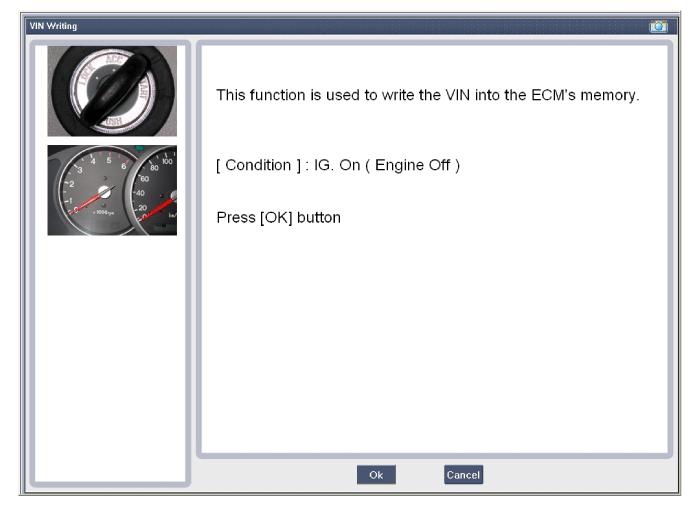

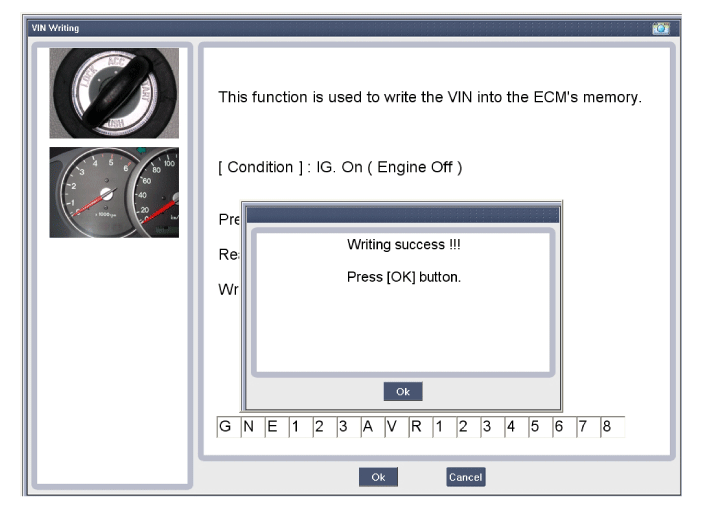

VIN Writing

    Operation 1. General Function • Auto-locate/learn takes place only once per Ignition cycle. • On successful completion, 4 road wheel sensor ID''s, together with their respective road wheel positions are latched into memory for monitoring.
