Kia Cadenza: Maintenance / Air cleaner
Filter replacement
It must be replaced when necessary,
and should not be washed.
You can clean the filter when inspecting
the air cleaner element.
Clean the filter by using compressed
air.

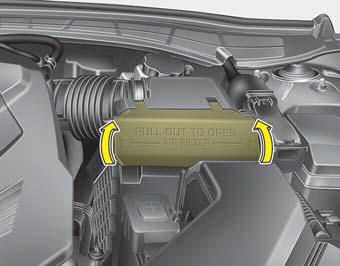

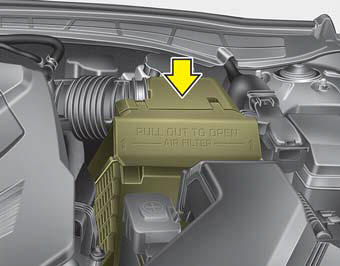

1. Pull out the air cleaner cover.

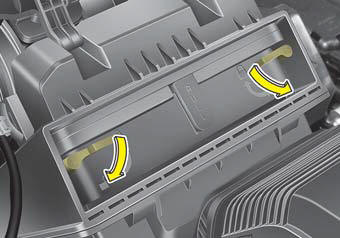

2. Unlock by turning the locking lever
downward.

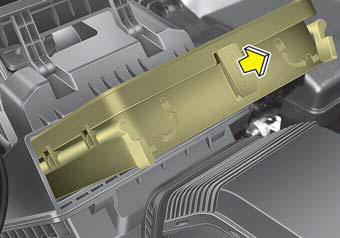

3. Pull the air cleaner filter to replace.
4. Lock the cover with the reverse
order.
Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extremely
dusty or sandy areas, replace the
element more often than the usual
recommended intervals. (Refer to
“Maintenance under severe usage
conditions” in this chapter.)
CAUTION - Air filter
maintenance
- Do not drive with the air cleaner
removed; this will result in
excessive engine wear.
- When removing the air cleaner
filter, be careful that dust or
dirt does not enter the air
intake, or damage may result.
- Use a Kia genuine part. Use of
a non-genuine part could
damage the air flow sensor.
