Kia Cadenza: Maintenance / Climate control air filter
Filter inspection
The climate control air filter should
be replaced according to the
Maintenance Schedule. If the vehicle
is operated in severely air-polluted
cities or on dusty rough roads for a
long period, it should be inspected
more frequently and replaced earlier.
When you replace the climate control
air filter, replace it performing the following
procedure, and be careful to
avoid damaging other components.
.jpg)

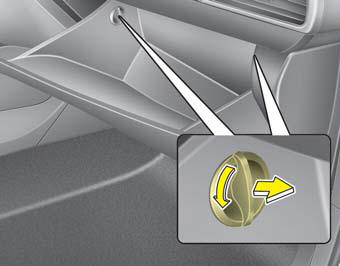

1. Open the glove box and remove
the stoppers on both sides.
.jpg)

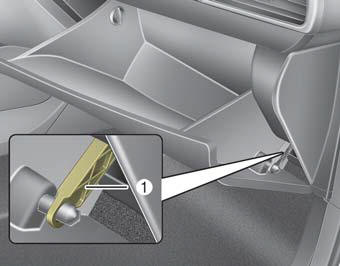

2. With the glove box open, pull the
support strap (1).
.jpg)

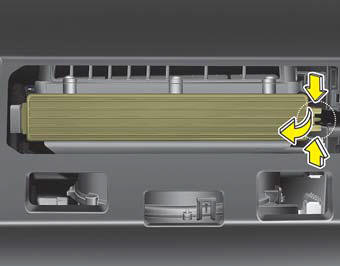

3. Remove the climate control air filter
cover while pressing the lock
on the right side of the cover.
.jpg)

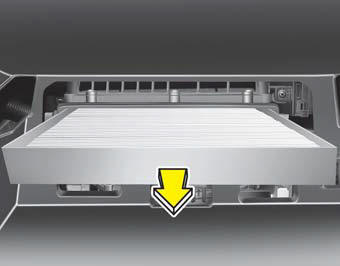

4. Replace the climate control air filter.
5. Reassemble in the reverse order
of disassembly.
When replacing the climate control
air filter install it properly. Otherwise,
the system may produce noise and
the effectiveness of the filter may be
reduced.
Filter replacement
It must be replaced when necessary,
and should not be washed.
You can clean the filter when inspecting
the air cleaner element.
Clean the filter by using compressed
air.
...
Blade inspection
Commercial hot waxes applied by
automatic car washes have been
known to make the windshield difficult
to clean.
Contamination of either the windshield
or the wiper blades ...
