Kia Cadenza: Automatic climate control system / Automatic heating and air conditioning

Kia Cadenza YG 2016-2025 Owners Manual / Features of your vehicle / Automatic climate control system / Automatic heating and air conditioning

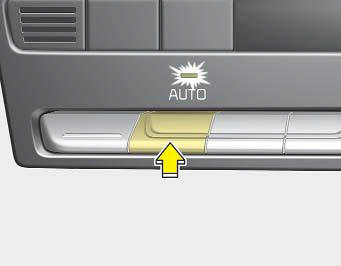

1. Press the AUTO button. The modes, fan speeds, air intake and air-conditioning will be controlled automatically by setting the temperature.

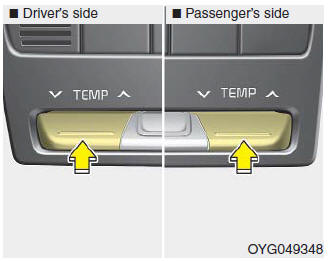

2. Turn the temperature control button to the desired temperature.

✽ NOTICE

✽ NOTICE

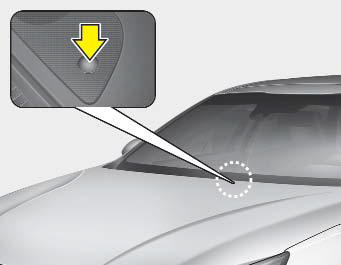

Never place anything over the sensor located on the instrument panel to ensure better control of the heating and cooling system.

Automatic climate control system
■ Type A ■ Type B System Overview 1. Front windshield defroster button 2. Rear window defroster button 3. SYNC temperature control selection button 4. Passenger's temperature control ...

Manual heating and air conditioning
The heating and cooling system can be controlled manually by pressing buttons or turning knob(s) other than the AUTO button. In this case, the system works sequentially according to the orde ...
