Kia Cadenza: Light bulbs / Back-up lamp (Bulb type) bulb
replacement
.jpg)
1. Open the trunk lid.
2. Loosen the retaining screw of the
trunk lid cover and then remove
the cover.
.jpg)

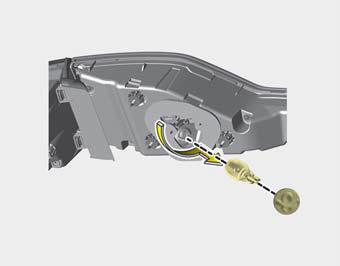

3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket
by pulling it out.
5. Insert a new bulb by inserting it
into the bulb-socket.
6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the trunk lid cover.
If the stop and tail lamp (LED type)
(1) does not operate, have the vehicle
checked by an authorized Kia
dealer.
The LED lamp cannot be replaced
as a single component because it is
an int ...
1. Open the trunk lid.
2. Open the service cover.
3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the a ...
