Kia Cadenza YG: Audio / Audio Remote Control Schematic Diagrams

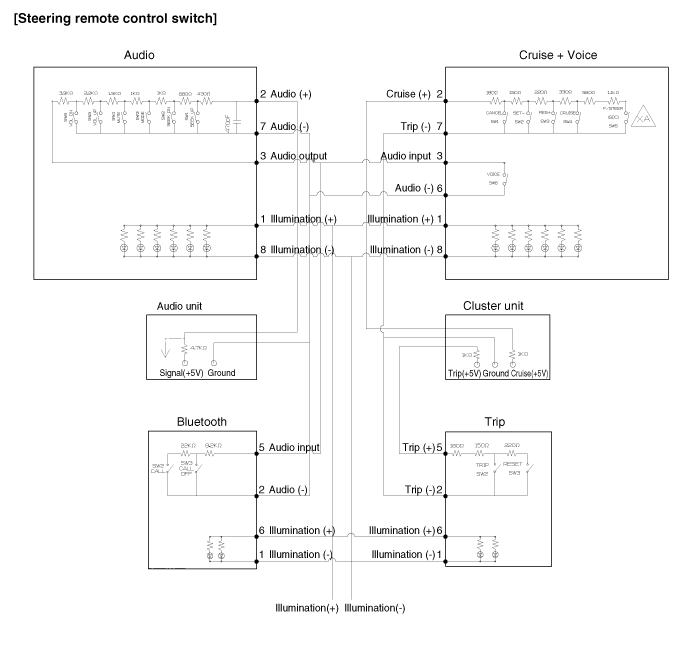

| Circuit Diagram |

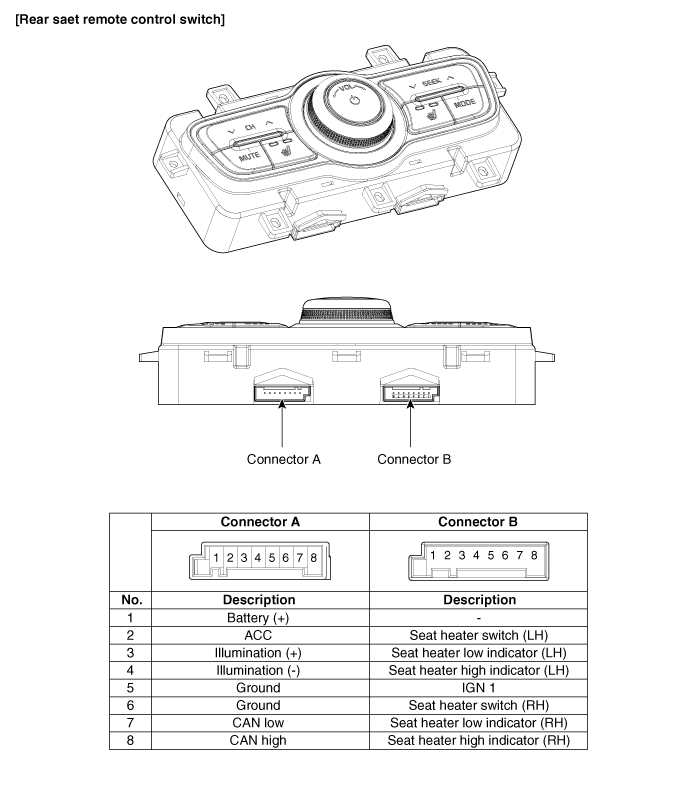

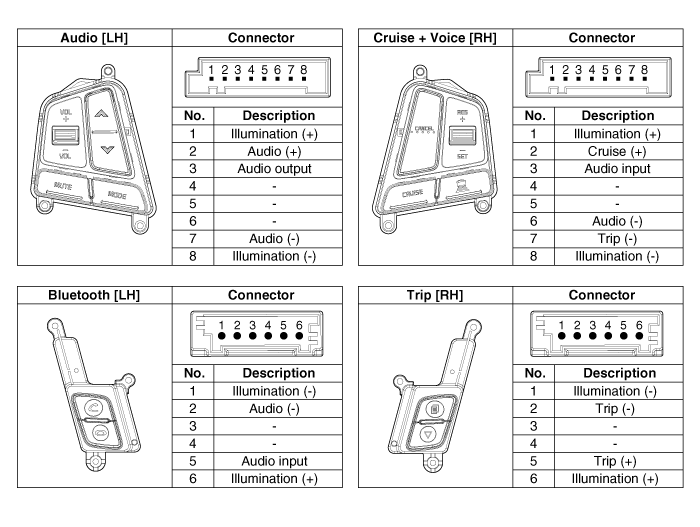

Components Location 1. Remote control switch (Audio) [LH]2. Remote control switch (Cruise) [RH]3. Bluetooth hands fress switch4. Trip switch5. Rear seat remote control switch
Inspection [Steering Remote Control Switch] 1. Check the audio remote control switch for resistance between terminals in each switch position. [Audio (LH)] SwitchConnectorterminalResistance(±5%)Seek up2-7430 ΩSeek down2-71.
