Kia Cadenza: Electronic Parking Brake
(EPB) / EPB malfunction indicator

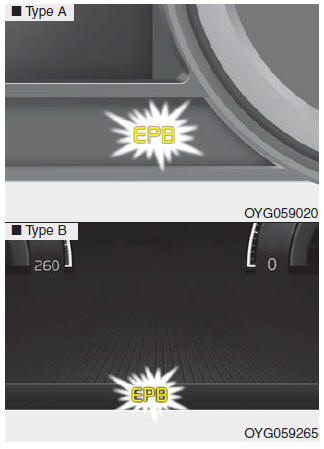

This warning light illuminates if the
ENGINE START/STOP button is
changed to the ON position and
goes off in approximately 3 seconds
if the system is operating normally.
If the EPB malfunction indicator
remains on, comes on while driving,
or does not come on when the
ENGINE START/STOP button is
changed to the ON position, this indicates
that the EPB may have malfunctioned.
If this occurs, have your vehicle
checked by an authorized Kia dealer
as soon as possible.
The EPB malfunction indicator may
illuminate when the ESC indicator
comes on to indicate that the ESC is
not working properly, but it does not
indicate a malfunction of the EPB.
CAUTION
- The EPB warning light may
illuminate if the EPB switch
operates abnormally. Shut the
engine off and turn it on again
after a few minutes. The warning
light will go off and the
EPB switch will operate normally.
However, if the EPB
warning light is still on, have
the system checked by an
authorized Kia dealer.
- If the parking brake warning
light does not illuminate or
blinks even though the EPB
switch was pulled up, the EPB
is not applied.
- If the parking brake warning
light blinks when the EPB
warning light is on, press the
EPB button, then pull it up.
Once more press it back to its
original position and pull it
back up. If the EPB warning
does not go off, have the system
checked by an authorized
Kia dealer.
