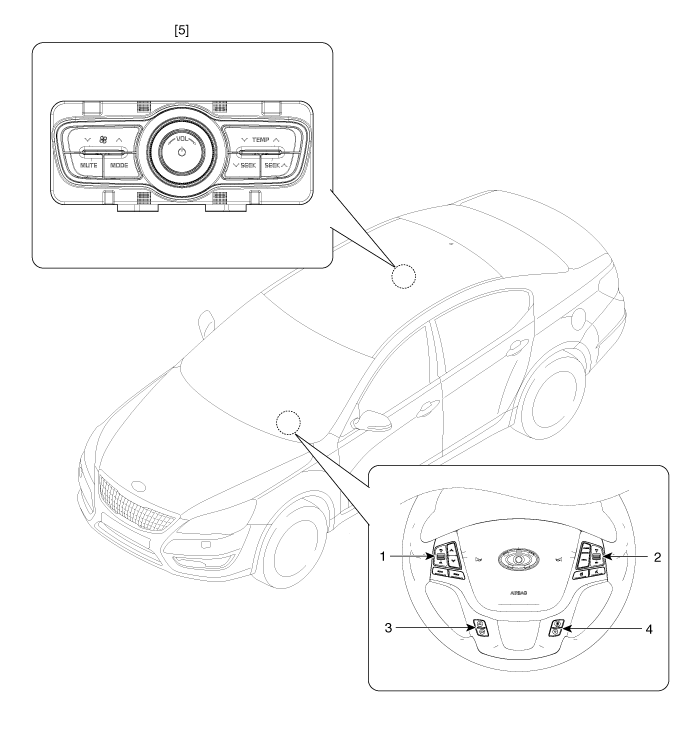

Components Location

1. Remote control switch (Audio) [LH]
2. Remote control switch (Cruise) [RH]
3. Bluetooth hands fress switch
4. Trip switch
5. Rear seat remote control switch

    Inspection Glass Antenna Test 1. Wrap aluminum foil (A) around the tip of the tester probe (B) as shown. 2. Touch one tester probe to the glass antenna terminal (A) and move the other tester probe along the antenna wires to check that continuity exists.

    Circuit Diagram

    Other information:

    Kia Cadenza YG 2016-2021 Service Manual: Temperature Control Actuator Repair procedures

    Inspection 1. Ignition "OFF" 2. Disconnect the connector of temperature control actuator. 3. Verify that the temperature control actuator operates to the hot position when connecting 12V to the terminal 3 and grounding terminal 7. Verify that the temperature control actuator operates to the cool position when connecting in the rev

    Kia Cadenza YG 2016-2021 Service Manual: Intake Actuator Repair procedures

    Inspection 1. Ignition "OFF". 2. Disconnect the intake actuator connector. 3. Verify that the actuator operates to the recirculation position when connecting 12V to the terminal 3 and grounding terminal 7. 4. Verify that the intake actuator operates to the fresh position when connecting in the reverse.
