Kia Cadenza: Driving your vehicle / Blind-Spot Collision Warning (BCW)/
Blind-Spot Collision-Avoidance Assist (BCA)
System description
Blind-Spot Collision Warning
Blind-Spot Collision Warning uses
radar sensors in the rear bumper to
monitor and warn the driver of an
approaching vehicle in the driver's
blind spot area.

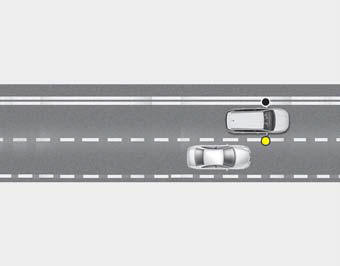

1) Blind-Spot Area
.jpg)
It warns by detecting the vehicles in
the blind spots. The blind spot detection
range varies relative to vehicle
speed.
Note that if your vehicle is traveling
much faster than the vehicles around
you, the warning will not occur.

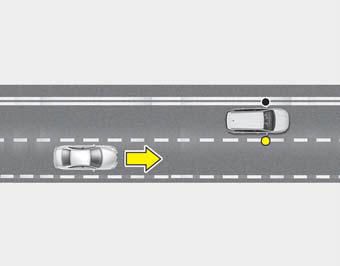

2) Closing at high speed
.jpg)
BCW feature will alert you when a
vehicle is approaching in an adjacent
lane at a high rate of speed. If the
driver activates the turn signal when
the system detects an oncoming
vehicle, the system sounds an audible
alert.
Blind-Spot Collision-Avoidance
Assist
.jpg)
Blind-Spot Collision-Avoidance
Assist detects the front lane through
the camera installed on the upper
front windshield and detects the
side/rear areas through rear corner
radars.
BCA may activate the Electronic
Stability Control (ESC) in accordance
with a colliding possibility with
an approaching vehicle while changing
lanes. It is to lower the colliding
risk or mitigate the colliding damage.
WARNING
- Always be aware of road conditions
while driving and be
alert for unexpected situations
even though Blind-Spot
Collision Warning and Blind-
Spot Collision-Avoidance
Assist are operating.
- Blind-Spot Collision Warning
and Blind-Spot Collision-
Avoidance Assist are supplemental
systems to assist you.
Do not entirely rely on the systems.
Always pay attention,
while driving, for your safety.
- Blind-Spot Collision Warning
and Blind-Spot Collision-
Avoidance Assist are not substitutes
for proper and safe
driving. Always drive safely
and use caution when changing
lanes or backing up the
vehicle. Blind-Spot Collision
Warning and Blind-Spot
Collision-Avoidance Assist
may not detect every object
alongside the vehicle.
• If there is a problem with the system
a message will appear. If the
problem continues the LKA failure
indicator will illuminate.
LKA failure indicator
LKA failure indicator (yellow) wi ...
System setting
The driver can activate the system
by placing the ENGINE
START/STOP button to the ON position
and by selecting “Settings >
Vehicle > Driver Assistance >
Bl ...
