| Replacement |
| 1. |

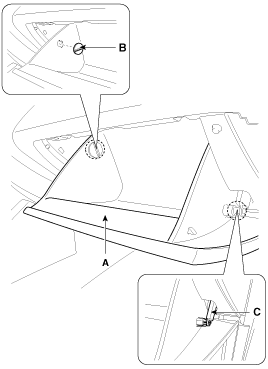

Disconnect the damper (B) from the glove box (A) and then remove the glove box lift (C).
|
| 2. |
Remove the filter cover (A) with pushing the knob.
|
| 3. |
Replace the air filter (B), install it after making sure of the direction of air filter.
|
| 4. |
Installation is the reverse order of removal.
|
Description This has particle filter which eliminates foreign materials and odor. The particle filter includes odor filter as well as conventional dust filter to ensure comfortable interior environment.
Component Location
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper. (Refer to Body - "Rear Bumper") 3. Remove the BSD unit (A) after loosening the mounting screws. Take care not to separate the bracket from rear bumper when removing the BSD sensor.
Component Location Components 1. Heater Case (LH)2. Separator3. Evaporator Core4. Shower Duct (LH)5. Heater Core Cover6. Heater Core7. Mode Actuator8. Mode Cam9. Temp Actuator (Drive)10. Vent Door Arm11. Floor Door Arm 1. Heater Case (RH)2.
