Kia Cadenza: Automatic climate control system / Climate control air filter

Kia Cadenza YG 2016-2025 Owners Manual / Features of your vehicle / Automatic climate control system / Climate control air filter

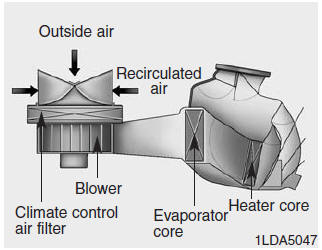

The climate control air filter installed behind the glove box, filters dust or other pollutants that come into the vehicle from the outside through the heating and air conditioning system. If dust or other pollutants accumulate in the filter over a period of time, air flow from the air vents may decrease, resulting in moisture accumulation on the inside of the windshield even when the outside (fresh) air position is selected. If this happens, have the climate control air filter replaced by an authorized Kia dealer.
