Kia Cadenza: Automatic Transaxle Control System / Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Components and Components Location

Components Location

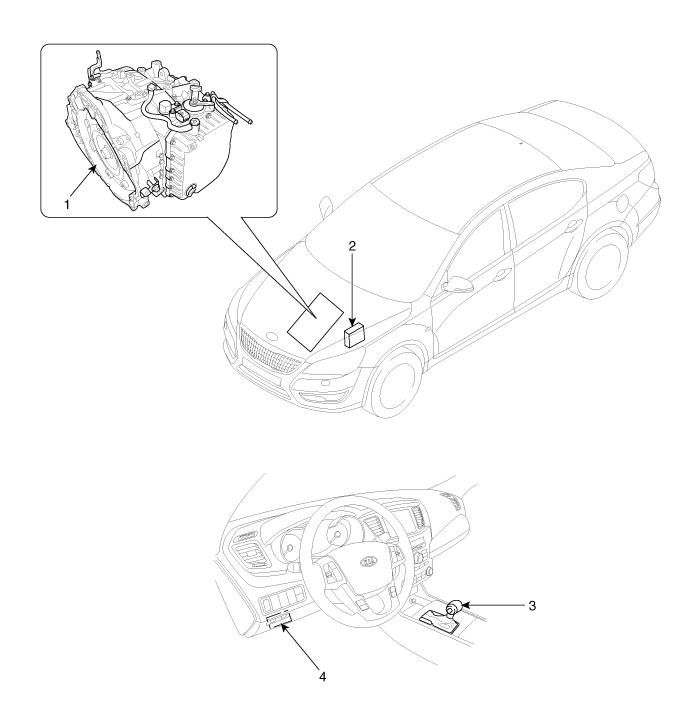

[Vehicle Components]

1. Automatic transaxle
2. Transaxle Control Module (TCM)
3. Shift lever
4. Date Linke Connector (DLC)

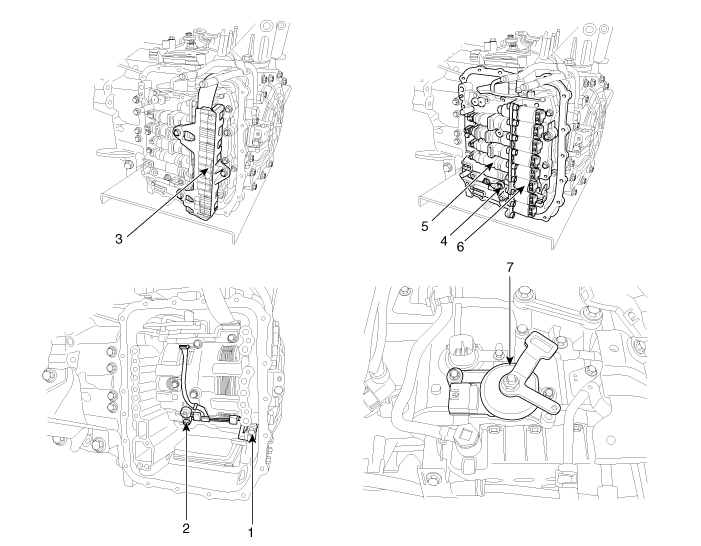

[Transaxle Components]

1. Input speed sensor
2. Output speed sensor
3. Solenoid valve connect
4. Oil Temperature Sensor (OTS)
5. Valve body assembly
6. Solenoid valve
7. Inhibitor switch
