Kia Cadenza: Steering wheel / Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Steering System / Steering wheel / Components and Components Location

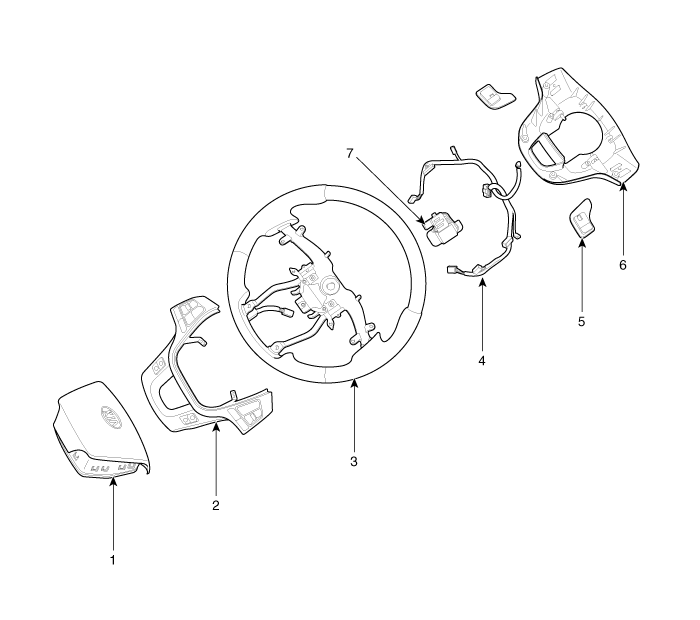

Component

1. Driver airbag (DAB)
2. Remote control switch
3. Steering wheel body
4. Wiring
5. Paddle shifter switch
6. Lower cover
7. Heated unit

Steering wheel
...

Repair procedures
Removal 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so that the front wheels can face straight ahead. 3. R ...
