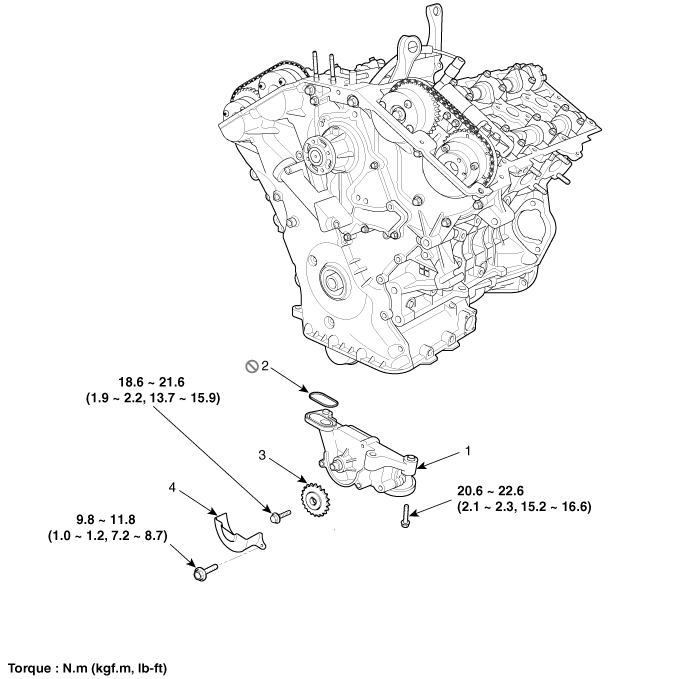

Components

1. Oil pump
2. O-ring

3. Oil pump sprocket
4. Oil pump chain cover

❮Oil Pan Repair procedures

Removal [Lower oil pan] 1. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly - "Engine Room Under Cover") 2. Drain the engine oil.

Oil Pump Repair procedures❯

Removal and Installation 1. Remove the lower oil pan. (Refer to Lubrication System - "Oil Pan") 2. Remove the oil pump chain cover (A). Tightening torque : 9.
