Kia Cadenza: Smart key System / Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Smart key System / Components and Components Location

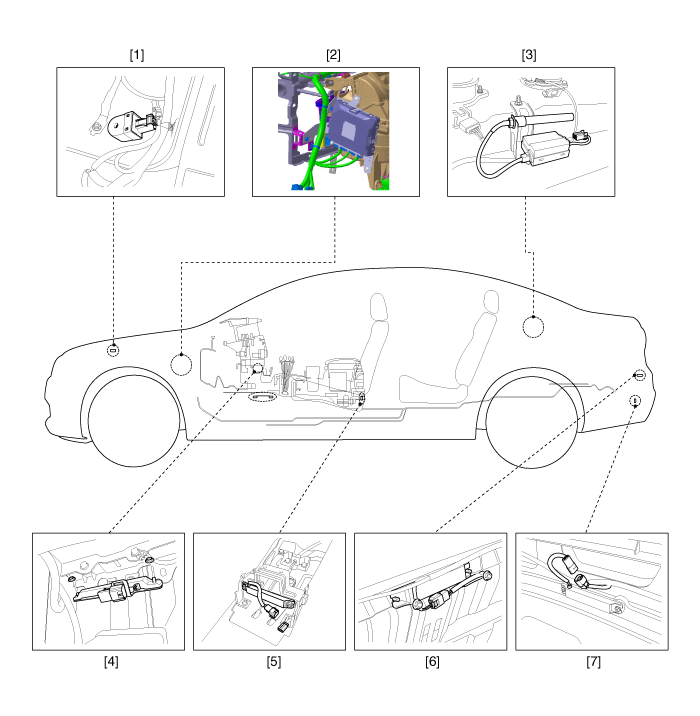

Component Location (1)

1. Buzzer
2. Smart key unit
3. RF receiver
4. Interior antenna 1

5. Interior antenna 2
6. Trunk antenna
7. Bumper antenna

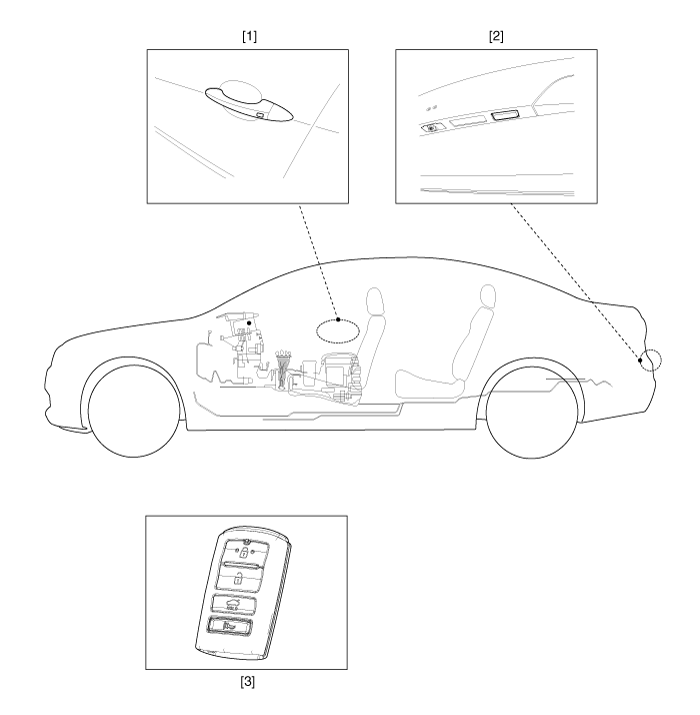

Component Location (2)

1. Door outside handle & Button
2. Trunk lid open switch

3. FOB key

Specifications

Specification Smart Key Unit ItemsSpecificationRated voltageDC 12VOperating voltageDC 9 ~ 16VOperating temperature-30°C ~ 75°C (-22°F ~ 167°F)Dark currentMax 2.9mA (When welcome light functi ...

Description and Operation

Description The SMART KEY system is a system that allows the user to access and operate a vehicle in a very convenient way. To access the vehicle, no traditional key or remote control unit is n ...
