Kia Cadenza YG: Engine And Transmission Assembly / Engine Mounting Components and Components Location

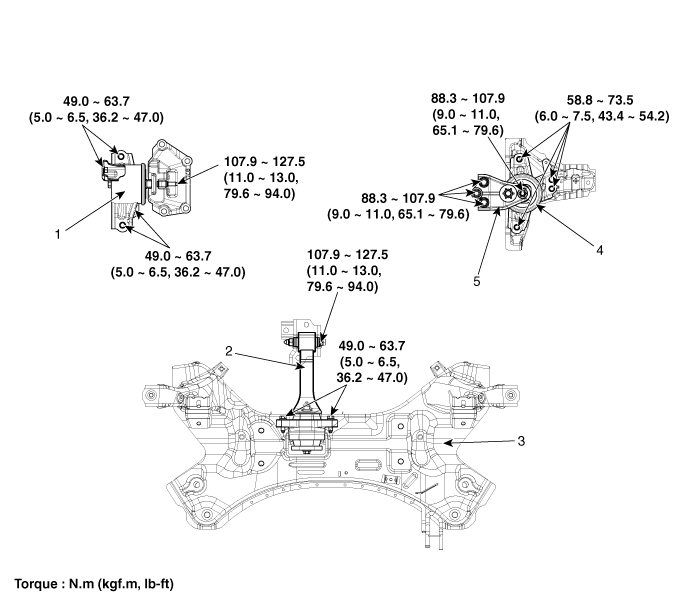

| Components |
| 1. Transaxle mounting bracket 2. Roll rod bracket 3. Sub frame | 4. Engine mounting bracket 5. Engine mounting support bracket |
Removal and Installation 1. Remove the engine room front under cover (A) and the side covers (B). When removing the under covers (B), unfasten the mounting bracket bolts and then remove the under cover and mounting bracket assembly.
Removal and Installation Engine Mounting Bracket 1. Disconnect the battery negative terminal. 2. Remove the engine room under cover. (Refer to Engine And Transaxle Assembly – “Engine Room Under Cover”) 3.
Other information:
Kia Cadenza YG 2016-2021 Service Manual: Schematic Diagrams
Circuit Diagram SVM System Input/Output 1. Camera input ItemSpecificationLens angle of view190 degreesAngle of viewHorizontal186 degreesVertical135 degreesFunctionProvides the original image of the wide angle image (no additional function)Application locationSame camera applied to the front, rear, left and right 2.
Kia Cadenza YG 2016-2021 Service Manual: Repair procedures
Removal 1. Remove the trunk trim in the trunk after removing the screws and clips. (Refer to Body - "Trunk") 2. Remove the camera holder (A) as shown arrow direction, and then remove the back view camera (B). Installation 1. Install the back view camera and camera holder.
