Kia Cadenza YG: Rear Curtain System / Components and Components Location
Kia Cadenza YG 2016-2021 Service Manual / Body Electrical System / Rear Curtain System / Components and Components Location

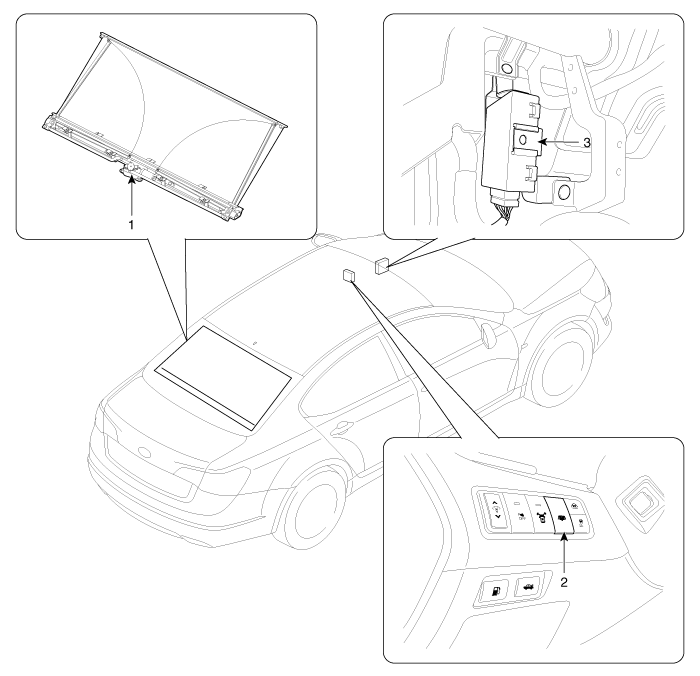

| Component Location |
| 1. Rear curtain 2. Rear curtain switch | 3. Rear curtain unit |
Description You can up & down rear curtain automatically by pressing the rear curtain switch. Rear curtain protect passenger from a direct ray of light by covering rear glass.
