Kia Cadenza YG: Lighting System / Head Lamps Components and Components Location
| Component |

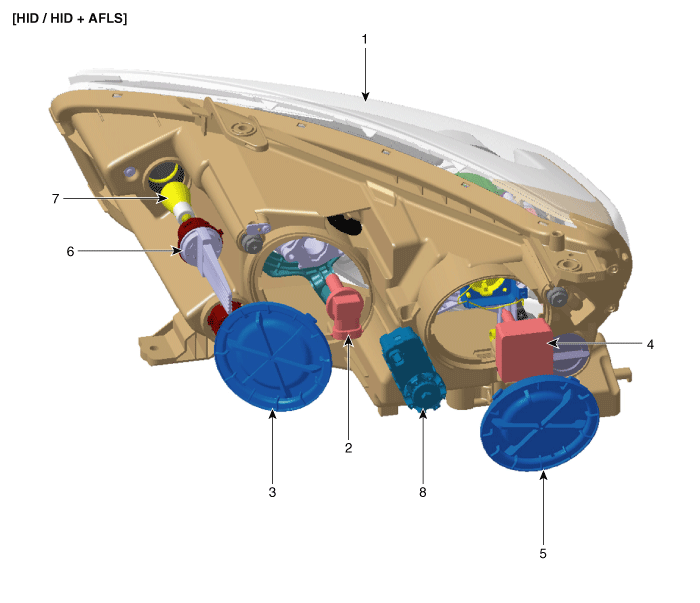

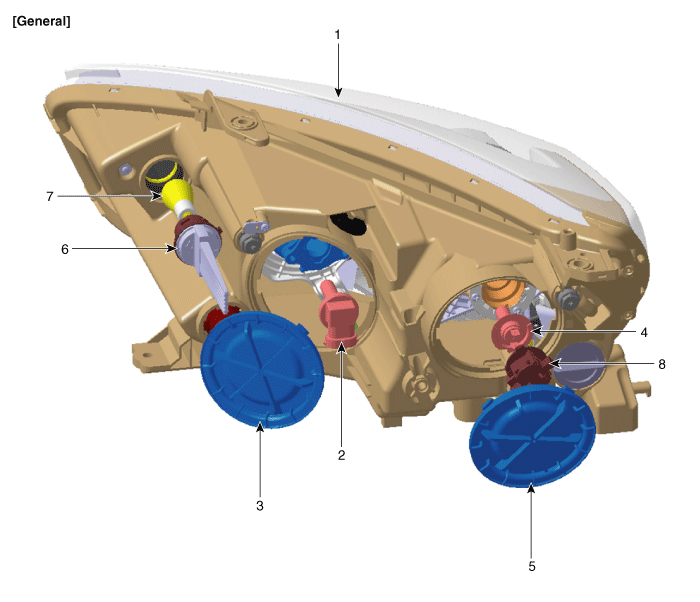

| 1. Head lamp assembly lens & housing 2. Head lamp high beam bulb 3. Dust cap (High) 4. Head lamp low beam bulb | 5. Dust cap (Low) 6. Turn signal lamp socket 7. Turn signal lamp bulb 8. Head lamp low beam bulb socket |
| 1. Head lamp assembly lens & housing 2. Head lamp high beam bulb 3. Dust cap (High) 4. Head lamp low beam bulb (HID) & ignitor | 5. Dust cap (Low) 6. Turn signal lamp socket 7. Turn signal lamp bulb 8. Head lamp leveling actuator (HID type applies only) |
Component Location (1) 1. Head lamp (Low)2. Head lamp (High)3. Position lamp4. Turn signal lamp5. DRL6. Fog lamp7. Overhead console lamp (General/ Panorama roof)8.
HID Head Lamp 1. Bulb (1) Elements Xenon gas: Xenon gas activates the initial reaction for rapid illuminating. Molybdenum electrode: anode arcing Metal halide salts: color composing component (2) Lightening principle When Xenon gas and metal halide salt will discharge the molybdenum anode in a capsule, it emits light.
