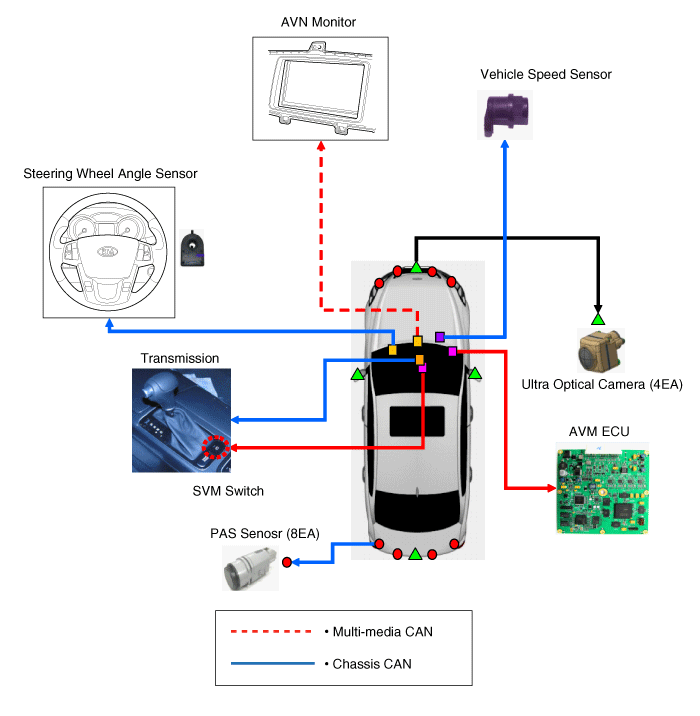

Components

Component Functions
No.
Components
Quantity
Major Role
1
SVM Unit
1
Input video information from 4 channel cameras and process display
Vehicle communication (CAN) and system control
Screen output in 8 view modes
2
Ultra optical camera
(190 degrees)
4
Record vehicle''s surrounding area
3
AVN Head Unit
1
Provide driver with video via SVM ECM output
Send user input data to SVM ECM
4
SVM Switch
1
Input video feed in Front Mode

Surround View Monitoring (SVM) System
...

Description and Operation
Description Surround View Monitoring System (SVM) is the system that allows video monitoring of 360 degrees around the vehicle. The system includes 4 ultra optical camera mounted around the veh ...
