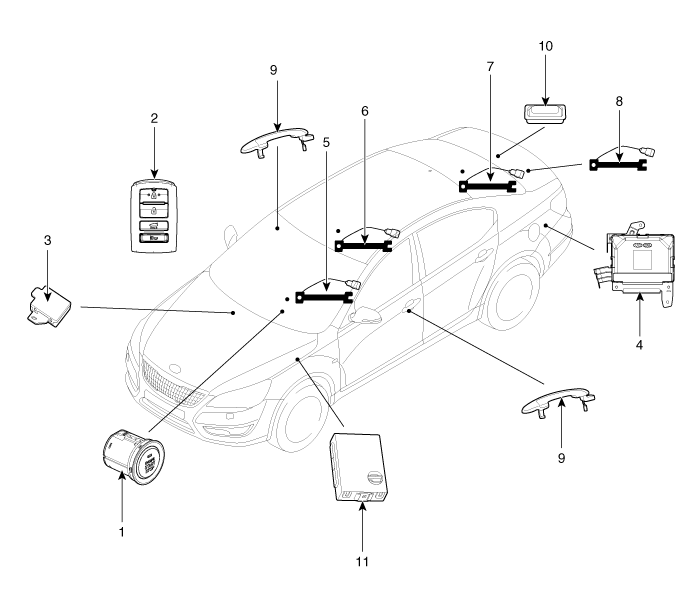

Component Location

1. Start Stop Button(SSB)
2. FOB key
3. RF receiver
4. Smart key unit
5. Interior antenna 1
6. Interior antenna 2
7. Trunk antenna
8. Bumper antenna
9. Door handle & door antenna
10. Trunk lid open switch
11. IPM (Intelligent intergrated Platform Module)

Button Engine Start System
...

Schematic Diagrams
Circuit Diagram (1) Circuit Diagram (2) ...
