Component Location Index

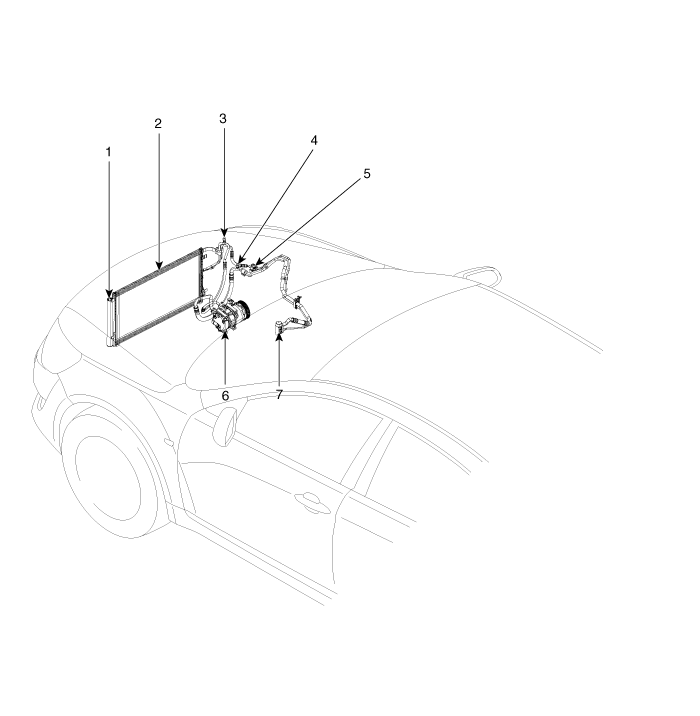

Engine Room

1. Receiver Drier
2. Condenser
3. Service Port (High Pressure)
4. Service Port (Low Pressure)
5. APT
6. Compressor
7. Expension Valve

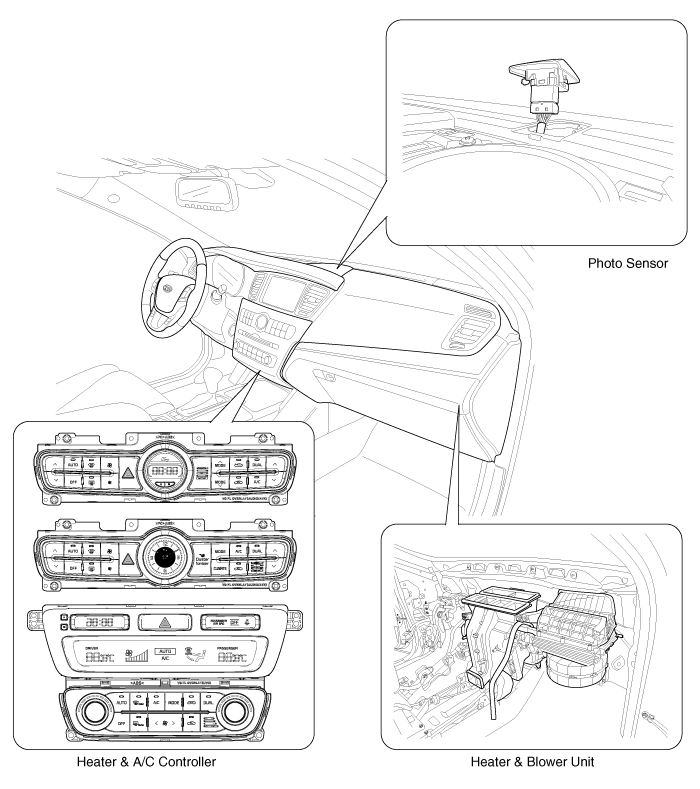

Interior

Repair procedures
Refrigerant System Service Basics Refrigerant Recovery Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a(R-134a) from the ...

Compressor Oil Repair procedures
Oil Specification 1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never be mixed. 2. Compressor (P ...
