Kia Cadenza: Cylinder Block / Crankshaft Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Engine Mechanical System / Cylinder Block / Crankshaft Components and Components Location

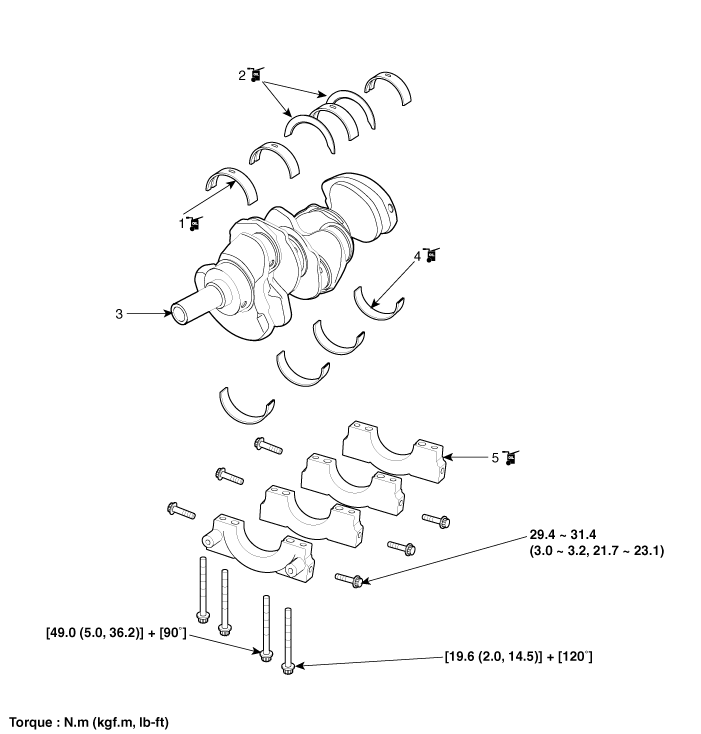

Components

1. Crank shaft upper bearing
2. Thrust bearing
3. Crankshaft

4. Crankshaft lower bearing
5. Main bearing cap

Piston and Connecting Rod Repair procedures

Disassembly • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the con ...

Crankshaft Repair procedures

Disassembly • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the con ...
