Kia Cadenza YG: Cylinder Head Assembly / Cylinder Head Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Components and Components Location

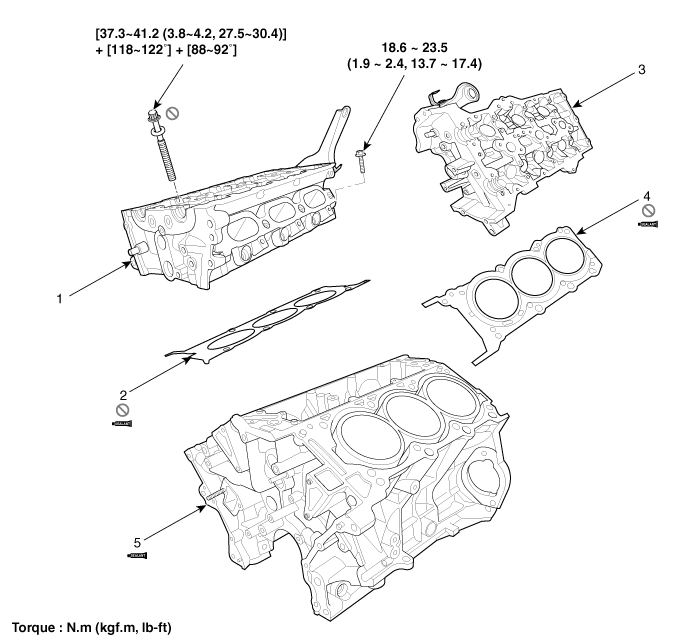

Components

1. RH Cylinder head
2. RH Cylinder head gasket
3. LH Cylinder head
4. LH Cylinder head gasket
5. Cylinder block

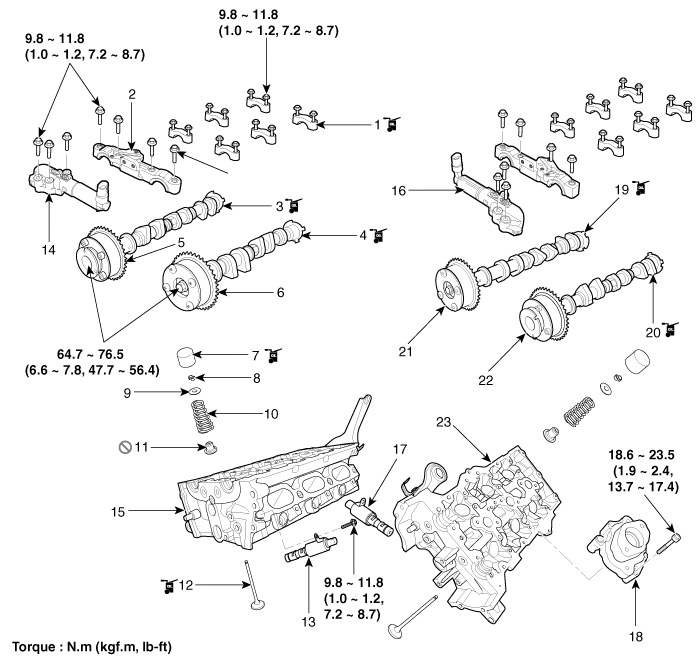

1. Camshaft bearing cap
2. Camshaft thrust bearing cap
3. RH Exhaust camshaft
4. RH Intake camshaft
5. RH Exhaust CVVT assembly
6. RH Intake CVVT assembly
7. Mechanical lash adjuster (MLA)
8. Retainer lock
9. Retainer
10. Valve spring
11. Valve stem seal
12. Valve
13. RH Intake camshaft OCV
14. RH Exhaust camshaft OCV
15. RH Cylinder head
16. LH Exhaust camshaft OCV

17. LH Intake camshaft OCV
18. Fuel pump bracket
19. LH Intake camshaft
20. LH Exhaust camshaft
21. LH Intake CVVT assembly
22. LH Intake CVVT assembly
23. LH Cylinder head

    Removal Continuous Variable Valve Timing (CVVT) 1. Remove the timing chain. (Refer to Timing System - "Timing Chain") 2. Remove the CVVT assembly.

    Removal     • Use fender covers to avoid damaging painted surfaces. • To avoid damaging the cylinder head, wait until the engine coolant temperature drops below normal temperature (20°C [68°F]) before removing it.
