Kia Cadenza: Warning message and control / Blind-Spot Collision Warning

Kia Cadenza YG 2016-2024 Owners Manual / Driving your vehicle / Blind-Spot Collision Warning (BCW)/ Blind-Spot Collision-Avoidance Assist (BCA) / Warning message and control / Blind-Spot Collision Warning

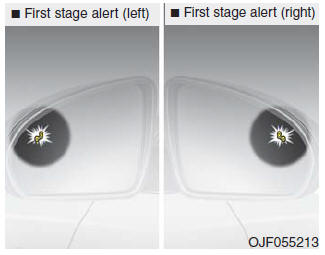

First stage alert

If a vehicle is detected within the boundary of the system, a warning light will illuminate on the outside rearview mirror.

Once the detected vehicle is no longer within the blind spot area, the warning will turn off according to the driving conditions of the vehicle.

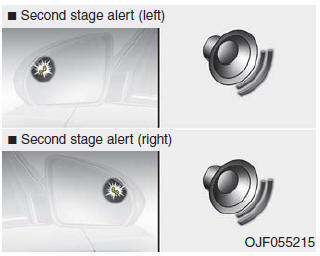

Second stage alert

[A] :Warning sound

A warning chime to alert the driver will activate when:

1. At the First stage alert (the warning light illuminate on the outside review mirror AND,
2. The turn signal is applied (same side as where the vehicle is being detected).

When this alert is activated, the warning light on the outside rearview mirror will also blink. And a warning chime will sound.

If you turn off the turn signal indicator, the second stage alert will be deactivated.

Once the detected vehicle is no longer within the warning area, the warning will turn off according to the driving conditions of the vehicle.

WARNING

CAUTION

Warning message and control
...

Blind-Spot Collision-Avoidance Assist
Blind-Spot Collision-Avoidance Assist may apply braking power, when an approaching vehicle is detected within a certain distance next to/behind your vehicle. It gently applies braking pow ...
