Kia Cadenza: Warning message and control / Blind-Spot Collision-Avoidance
Assist
.jpg)
.jpg)
Blind-Spot Collision-Avoidance
Assist may apply braking power,
when an approaching vehicle is
detected within a certain distance
next to/behind your vehicle.
It gently applies braking power on the
tire, which is located in the opposite
side of the possibly-colliding point.

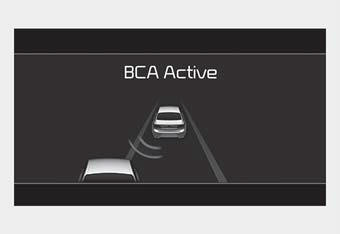

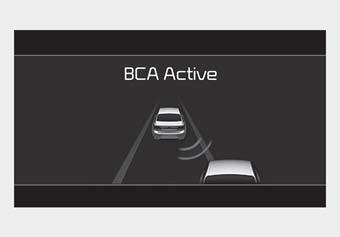

The instrument cluster will inform the
driver of the system activation.
Blind-Spot Collision-Avoidance Assist
is automatically deactivated when:
- When the vehicle is deviated over
a certain distance from its driving
lane.
- The vehicle direction is changed
against the possible-colliding point
- The steering wheel is abruptly
moved
- The brake pedal is depressed
- After a certain period of time
The driver should drive the vehicle in
the middle of the vehicle lanes to
keep the system in the ready status.
When the vehicle drives too close to
one side of the vehicle lanes, the
system may not properly operate.
In addition, the system may not properly
control your vehicle in accordance
with driving situations. Thus, always
pay close attention to road situations.
WARNING
- The driver is responsible for
accurate steering.
- Do not unnecessarily operate
the steering wheel, when
Blind-Spot Collision-
Avoidance Assist is in operation.
- Always exercise extreme caution
while driving. Blind-Spot
Collision-Avoidance Assist
may not operate or unnecessarily
operate in accordance
with your driving situations.
- Blind-Spot Collision-
Avoidance Assist is not a substitute
for safe driving practices,
but a convenience function
only. It is the responsibility
of the driver to always
drive cautiously to prevent
unexpected and sudden situations
from occurring. Pay
attention to the road conditions
at all times.
First stage alert
If a vehicle is detected within the
boundary of the system, a warning
light will illuminate on the outside
rearview mirror.
Once the detected vehicle is no
longer within ...
Front view camera
The front view camera is a sensor
detecting the lane. If the front view
camera is covered by heavy rain,
heavy snow and fog or foreign
objects, dust, the system may tempor ...
