Kia Cadenza: Manual & Automatic reset / Digital speedometer. Drive mode

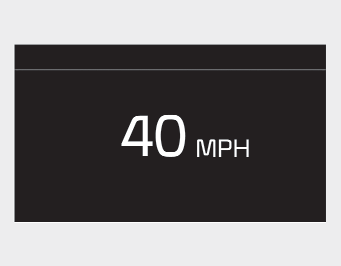

Digital speedometer

This mode displays the current
speed of the vehicle.

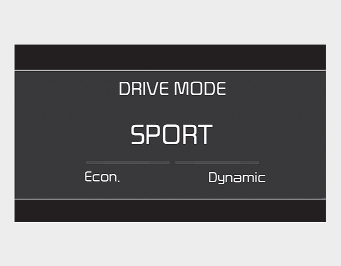

Drive mode

This mode displays the currently
selected drive mode.
This display shows the trip distance
(1), the average fuel efficiency (2),
and the total driving time (3) information
once per one ignition cycle.
Fuel efficiency is calculated after
th ...
✽ NOTICE
To use the service interval menu,
consult an authorized Kia dealer.
Service in
It calculates and displays when you
need a scheduled maintenance
service (mileage or days).
If the r ...
