LCD Display Control

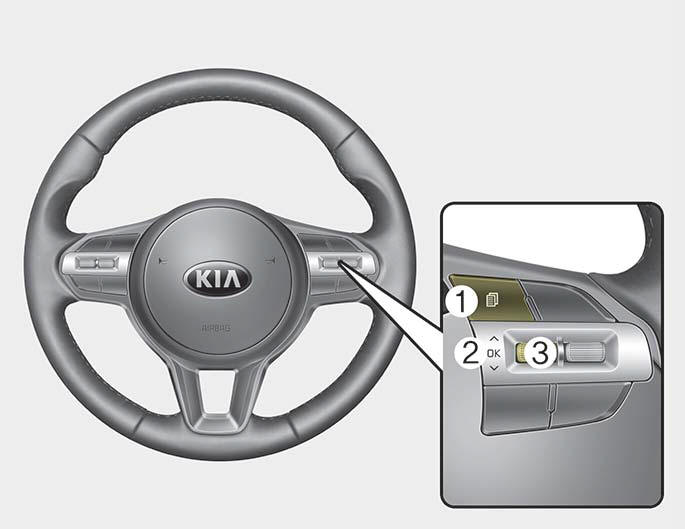

The LCD display modes can be changed by using the control buttons.

(1) : MODE button for changing modes
(2) : MOVE switch for changing items
(3) OK : SELECT/RESET button for setting or resetting the selected item
