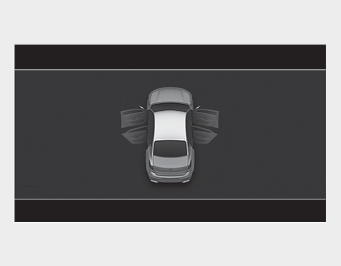

Door, Hood, Trunk open

• This warning is displayed indicating which door, hood or trunk is open.

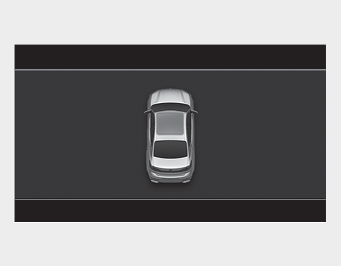

Sunroof Open

• This warning is displayed if you turn off the engine when the sunroof is open.

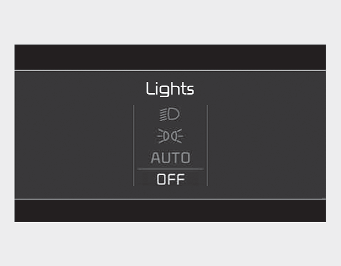

Lights mode

• This indicator displays which exterior light is selected using the lighting control.

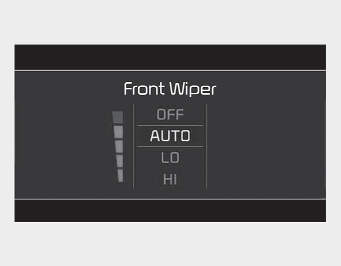

Wiper mode

• This indicator displays which wiper speed is selected using the wiper control.

Engine has overheated

• This warning message illuminates when the engine coolant temperature is above 248°F (120°C).

This means that the engine is overheated and may be damaged.

Turn FUSE SWITCH On

Shift to P

Low Key Battery

• This warning message illuminates if the battery of the smart key is discharged when the ENGINE START/STOP button changes to the OFF position.

Press START button while turning wheel

• This warning message illuminates if the steering wheel does not unlock normally when the ENGINE START/STOP button is pressed.

• It means that you should press the ENGINE START/STOP button while turning the steering wheel right and left.

Press brake pedal to start engine

• This warning message illuminates if the ENGINE START/STOP button changes to the ACC position twice by pressing the button repeatedly without depressing the brake pedal.

• It means that you should depress the brake pedal to start the engine.

Key not in vehicle

• This warning message illuminates if the smart key is not in the vehicle when you press the ENGINE START/STOP button.

• It means that you should always have the smart key with you.

Key not detected

• This warning message illuminates if the smart key is not detected when you press the ENGINE START/STOP button.

Key not detected

• This warning message illuminates if the smart key is not detected when you press the ENGINE START/STOP button.

Press START button again

• This warning message illuminates if you can not operate the ENGINE START/STOP button when there is a problem with the ENGINE START/STOP button system.

• It means that you could start the engine by pressing the ENGINE START/STOP button once more.

• If the warning illuminates each time you press the ENGINE START/STOP button, have the vehicle inspected by an authorized Kia dealer.

Press START button with key

• This warning message illuminates if you press the ENGINE START/STOP button while the warning message “Key not detected” is illuminating.

• At this time, the immobilizer indicator light blinks.

Check BRAKE SWITCH fuse

• This warning message illuminates if the brake switch fuse is blown.

• It means that you should replace the fuse with a new one. If that is not possible, you can start the engine by pressing the ENGINE START/STOP button for 10 seconds in the ACC position.

Shift to P or N to start engine

• This warning message illuminates if you try to start the engine with the shift lever not in the P (Park) or N (Neutral) position.

✽ NOTICE

You can start the engine with the shift lever in the N (Neutral) position. But, for your safety, we recommend that you start the engine with the shift lever in the P (Park) position.

Low Washer Fluid

• This warning message illuminates if the washer fluid level in the reservoir is nearly empty.

• It means that you should refill the washer fluid.

Low Fuel

• This warning message illuminates if the fuel tank is nearly empty.

- When the low fuel level warning light illuminates, add fuel as soon as possible.

Device in wireless charger

• This warning messages will illuminate when the vehicle ignition is in OFF and the smart phone is on the wireless charging pad in below two situations.

1. When the driver or passenger door is opened.

2. When one minute passed after the ignition has been turned OFF (and the door has not been opened for more than one minute).

Check headlamp LED

This warning message illuminates if the headlamp does not turn on normally when you attempt to turn the head lamp on. In this case, have your vehicle inspected by an authorized Kia dealer.

Battery discharging due to external electrical devices

The vehicle can detect self-discharge of the battery due to over-current that is generated by unauthorized electrical devices such as dashboard camera (dash cam) mounting during parking.

If the warning continues even after external electrical devices are removed, have your vehicle inspected by an authorized Kia dealer.

Service Mode
✽ NOTICE To use the service interval menu, consult an authorized Kia dealer. Service in It calculates and displays when you need a scheduled maintenance service (mileage or days). If the r ...
