Kia Cadenza: Mirrors / Erasing HomeLink® buttons
.jpg)

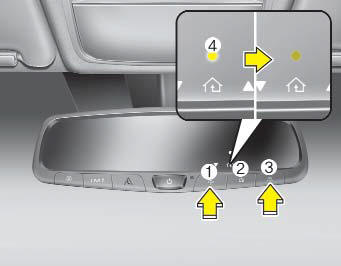

1. Press and hold the button (1) and
(3) simultaneously.
2. The indicator (4) is turned continuously
ON in orange for about 10
seconds.
3. Then the indicator (4) color
changes to Green and flashes rapidly.
Release the buttons once the
green indicator flashes.
4. Now HomeLink button (1), (2) and
(4) memories are all cleared.
OYG040643N
NVS®is a registered trademark and
Z-Nav™ is a trademark of the
Gentex Corporation, Zeeland,
Michigan.
HomeLink®is a registered trademark
owned by Johnson Controls,
Incorporated, Milwaukee, Wisconsin.
