Kia Cadenza: Bumper / Front Bumper Components and Components Location

Kia Cadenza YG 2016-2024 Service Manual / Body (Interior and Exterior) / Bumper / Front Bumper Components and Components Location

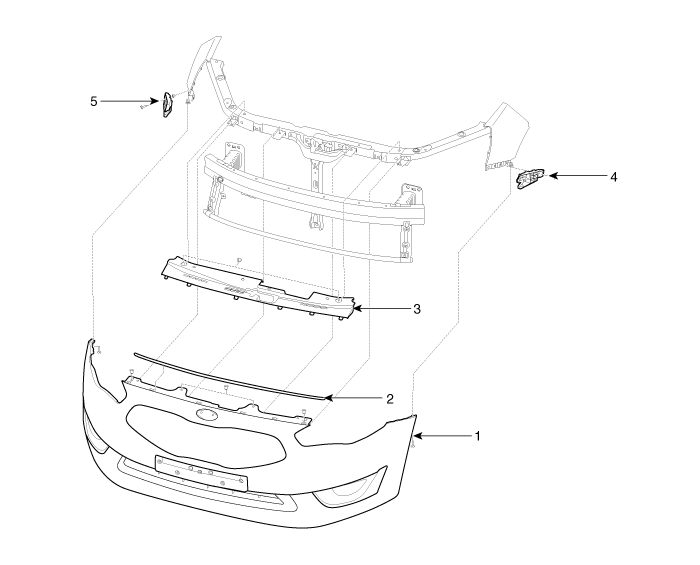

Components(1)

1. Front bumper cover
2. Front bumper upper weatherstrip
3. Radiator grill upper guide
4. Front bumper side bracket [LH]
5. Front bumper side bracket [RH]

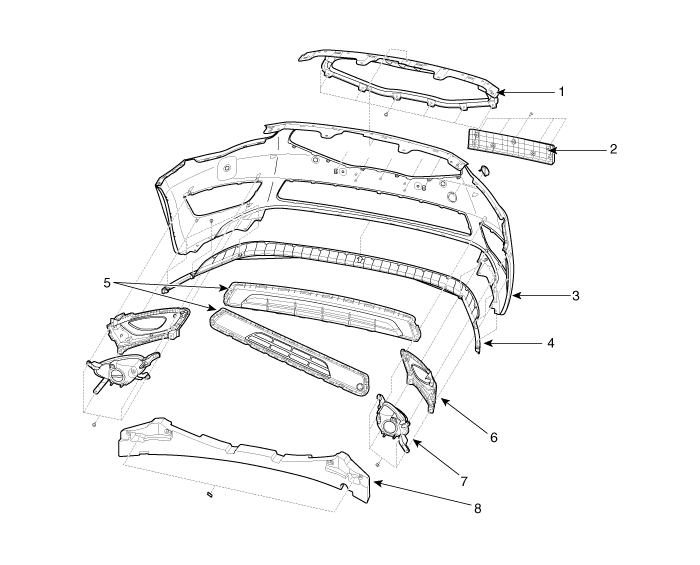

Components(2)

1. Radiator grill
2. Front bumper license plate
3. Front bumper cover
4. Front bumper lip assmbly
5. Front bumper center grill
6. Front bumper side grill
7. Fog lamp assembly
8. Front bumper energy absorber
