Kia Cadenza: Light bulbs / Front side marker (LED type) bulb replacement

Kia Cadenza YG 2016-2023 Owners Manual / Maintenance / Light bulbs / Front side marker (LED type) bulb replacement

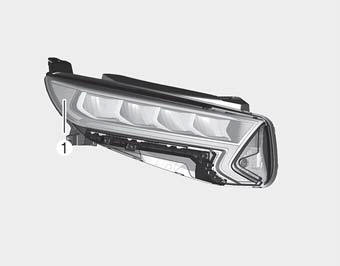

If the front side marker (LED type) (1) does not operate, have the vehicle checked by an authorized Kia dealer.

The LED lamp cannot be replaced as a single component because it is an integrated unit. The LED lamp has to be replaced with the unit.

A skilled technician should check or repair the front side marker (LED type), for it may damage related parts of the vehicle.
