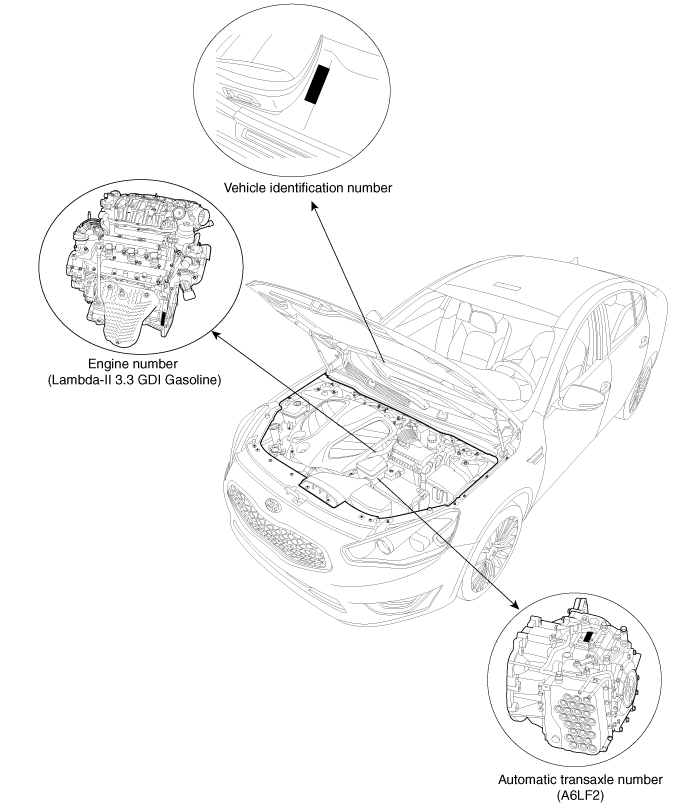

Identification Number

Identification Number Description
Vehicle Identification Number

1.
World Manufacturer Identifier (WMI)
- KNA : Passenger vehicle, MPV(Multipurpose Passenger Vehicle)/SUV(Sports Utility Vehicle)/RV(Recreational Vehicle)
- KNC : Commercial vehicle (Van)
- KND : MPV/SUV/RV (For U.S.A, Canada, Mexico)
- KNH : Van
2.
Vehicle line
- L : CADENZA
3.
Model & Series
- L : Low grade (L)
- M : Middle-Low grade (GL)
- N : Middle grade (GLS, JSL, TAX)
- P : Middle-High grade (HGS)
- R : High grade (TOP)
4.
Body/Cabin type, Gross Vehicle Weight Rating
KNA
- 1 : Limousine
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
KNC (Commercial vehicle / Van)
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- X : Standard Cabin / Semi-Bonnet
- Y : Double Cabin / Bonnet
- Z : Super Cabin / Box
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- 2 : Standard Cabin Class-H 4×2
- 3 : Standard Cabin Class-E 4×2 / Semi-Bonnet Class-E 4×2
- 4 : Standard Cabin Class-E 4×4 / Semi-Bonnet Class-E 4×4
- 5 : Standard Cabin Class-F 4×2 / Semi-Bonnet Class-F 4×2
- 6 : Standard Cabin Class-F 4×4 / Semi-Bonnet Class-F 4×4
- 7 : Double Cabin Class-E 4×2 / Bonnet Class-E 4×2
- 8 : Double Cabin Class-E 4×4 / Bonnet Class-E 4×4
- 9 : Double Cabin Class-F 4×2 / Bonnet Class-F 4×2
- 0 : Double Cabin Class-F 4×4 / Bonnet Class-F 4×4
- A : Super Cabin Class-E 4×2 / Box Class-E 4×2
- B : Super Cabin Class-E 4×4 / Box Class-E 4×4
- C : Super Cabin Class-F 4×2 / Box Class-F 4×2
- D : Super Cabin Class-F 4×4 / Box Class-F 4×4
KND
- 1 : Wagon 4×2 Class-A
- 2 : Wagon 4×2 Class-B
- 3 : Wagon 4×2 Class-C
- 4 : Wagon 4×2 Class-D
- 5 : Wagon 4×2 Class-E
- 6 : Wagon 4×2 Class-F
- 7 : Wagon 4×2 Class-G
- A : Wagon 4×4 Class-A
- B : Wagon 4×4 Class-B
- C : Wagon 4×4 Class-C
- D : Wagon 4×4 Class-D
- E : Wagon 4×4 Class-E
- F : Wagon 4×4 Class-F
- G : Wagon 4×4 Class-G
KNH
- 1 : Box
- 2 : Bonnet
- 3 : Semi-Bonnet
5.
Restraint system, Brake system
KNA, KND
Except U.S.A, Canada, Mexico
- 0 : Both side - None
- 1 : Both side - Active belt
- 2 : Both side - Passive belt
For U.S.A, Canada, Mexico
Code
Seat belt
Front air bag
Knee air bag
Side air bag
Curtain air bag
Driver''s
Passenger''s
Driver''s
Passenger''s
1st row
2nd row
3rd row
1st row
2nd row
3rd row
A



×
×

×
×


×
B



×
×
×
×
×
×
×
×
C



×
×

×
×



D



×
×


×


×
E


×
×
×
×
×
×
×
×
×
F



×
×

×
×
×
×
×
J




×


×


×
L




×

×
×


×
N

×
×
×
×
×
×
×
×
×
×
H




×

×
×




KNC, KNH
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
- X : Hydraulic brake system
- Y : Pneumatic brake system
- Z : Mixed brake system
6.
Engine type
- 7 : Gasoline engine 3.3 GDI (Lambda-II)
7.
Check digit or Driver’s side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- A : LHD & MT
- B : LHD & AT
- C : LHD & MT+Transfer
- D : LHD & AT+Transfer
- E : LHD & CVT
- F : LHD & Decelerator
- G : LHD & DCT
- L : RHD & MT
- M : RHD & AT
- N : RHD & MT+Transfer
- S : RHD & AT+Transfer
- T : RHD & CVT
- U : RHD & Decelerator
- V : RHD & DCT
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- Check digit : 0 ~ 9, ×
8.
Model year
- D : 2013, E : 2014, F : 2015, G : 2016 …
9.
Plant of production
- 5 : Hwasung (Korea)
- 6 : Sohari (Korea)
- 7 : Kwangju (Korea)
- T : Seosan (Korea)
10.
Vehicle production sequence number
- 000001 ~ 999999
Engine Number

1.
Engine fuel
- G : Gasoline
2.
Engine range
- 6 : 4 cycle 6 cylinder
3.
Engine development order and capacity
- D : Lambda engine (Gasoline)
4.
Engine Capacity
- H : 3342cc (Lambda-II GDI engine)
5.
Production year
- D : 2013, E : 2014, F : 2015, G : 2016 …
6.
Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
7.
Engine production sequence number
- 000001 ~ 999999
Transaxle Number
Automatic

1.
Model
- BA : A6LF2
2.
Production year
- D : 2013, E : 2014, F : 2015, G : 2016 …
3.
Final gear ratio
- Q : 3.041
4.
Detailed classification
- H : Lambda-H 3.3 GDI
5.
Plant of production
- 2 : HPT Plant 2
- 4 : HPT Plant 4
- U : Ulsan Plant 1
- S : Ulsan Plant 2
- H : Hwasung
6.
Transaxle production sequence number
- 000001~999999
Paint Code
Code
Color
ABP
Aurora Black Pearl
ABT
Platinum Graphite
K3N
Golden Beat
LC
Light Graphite
STM
Satin Metal
SWP
Snow White Pearl
3D
Bright Silver
