Kia Cadenza: Interior lights / Glove box lamp

Kia Cadenza YG 2016-2024 Owners Manual / Features of your vehicle / Interior lights / Glove box lamp

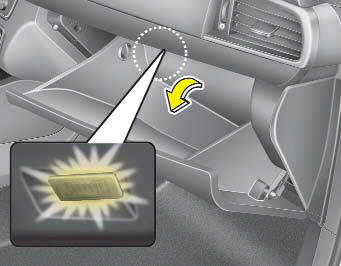

The glove box lamp comes on when the glove box is opened.

To prevent unnecessary battery drain, close the glove box securely after using the glove box.
