Kia Cadenza: Features of your vehicle / Welcome system

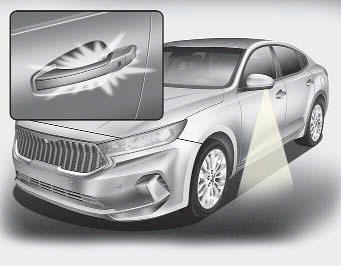

Welcome light
.jpg)
When all the doors (and trunk) are locked and closed, the pocket lamp and puddle lamp will come on for about 15 seconds if any of the below is performed.
• With the smart key system
- When the vehicle is approached with the smart key in possession
Welcome light is a device for improving night safety by illuminating the vehicle and around.
Welcome light is activated or deactivated when you select ‘‘Settings → Vehicle → Convenience → Welcome mirror/light’ from the Settings menu in the Infotainment System screen.
Escort welcome
When the headlight(light switch in the headlight or AUTO position) is on and all doors (and trunk) are locked and closed, the position light and headlight will come on for 15 seconds if any of the below is performed.
• Without smart key system
- When the door unlock button is pressed on the transmitter.
• With the smart key system
- When the door unlock button is pressed on the smart key.
At this time, if you press the door lock or unlock button, the position light and headlight will turn off immediately.
Interior light
When the interior light switch is in the DOOR position and all doors (and trunk) are locked and closed, the room lamp will come on for 30 seconds if any of the below is performed.
• Without smart key system
- When the door unlock button is pressed on the transmitter.
• With the smart key system
- When the door unlock button is
pressed on the smart key.
- When the button of the outside
door handle is pressed.
At this time, if you press the door lock button, the lamps will turn off immediately.
Glove box lamp
The glove box lamp comes on when
the glove box is opened.
To prevent unnecessary battery
drain, close the glove box securely
after using the glove box. ...
