Kia Cadenza: Electronic stability control
(ESC) / Indicator light
![](images/indicator_light-1129/904/pages.14(4).jpg)

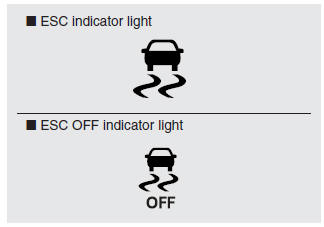

When ENGINE START/STOP button
is turned to ON, the indicator light
illuminates, then goes off if the ESC
system is operating normally.
The ESC indicator light blinks whenever
ESC is operating or illuminates
when ESC fails to operate.
The ESC OFF indicator light comes
on when the ESC is turned off with
the button.
CAUTION
Driving with varying tire or
wheel sizes may cause the ESC
system to malfunction. When
replacing tires, make sure they
are the same size as your original
tires.
WARNING - Electronic stability
control
Drive carefully even though your
vehicle has Electronic Stability
Control. It can only assist you in
maintaining control under certain
circumstances.
ESC OFF state
This car has 2 kinds of ESC
off states. If the vehicle
stops when ESC is off, ESC
remains off. Upon restarting
the vehicle, the ESC will
automatically turn on again.
• ...
When driving
ESC should be turned on for daily
driving whenever possible.
To turn ESC off while driving, press
the ESC OFF button while driving
on a flat road surface.
WARNING - Oper ...
