Kia Cadenza: Instrument cluster / Instrument Cluster Control
Adjusting Instrument Cluster
Illumination
.jpg)

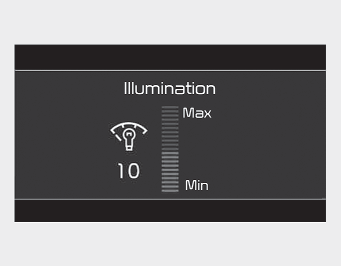

The brightness of the instrument
panel illumination is changed by
pressing the illumination control button
(“+” or “-”) when the ENGINE
START/STOP button is ON, or the taillights
are turned on.

- If you hold the illumination control
button (“+” or “-”), the brightness
will be changed continuously.
- If the brightness reaches to the
maximum or minimum level, an
alarm will sound.
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display ...
Speedometer
The speedometer indicates the
speed of the vehicle and is calibrated
in miles per hour (mph) and/or kilometers
per hour (km/h).
Tachometer
The tachometer indicates the
appro ...
