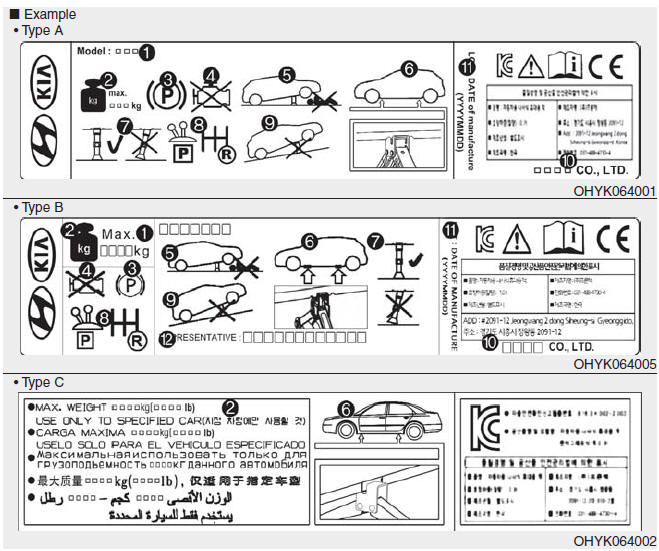

Kia Cadenza: Changing tires / Jack label
.jpg)
1. Model Name
2. Maximum allowable load
3. When using the jack, set your
parking brake.
4. When using the jack, stop the
engine.
5. Do not get under a vehicle that is
supported by a jack.
6. The designated locations under
the frame
7. When supporting the vehicle, the
base plate of jack must be vertical
under the lifting point.
8. Move the shift lever to the P position
on vehicles with automatic
transmission.
9. The jack should be used on firm
level ground.
10. Jack manufacturer
11. Production date
12. Representative company and
address
Your vehicle is equipped with a compact
spare tire. This compact spare
tire takes up less space than a regular-
size tire. This tire is smaller than a
conventional tire and is designed for
t ...
