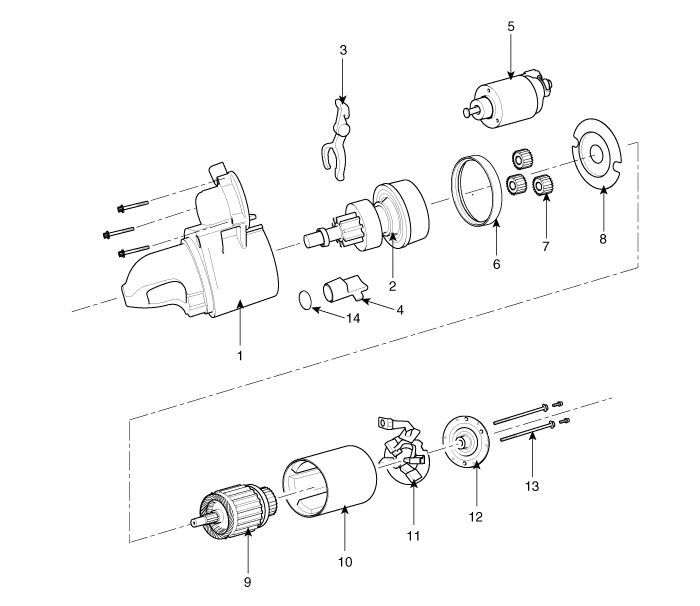

Components

1. Front housing
2. Planet gear shaft assembly
3. Lever
4. Lever packing
5. Starter solenoid assembly
6. Packing
7. Planet gear
8. Shield
9. Armature assembly
10. York assembly
11. Brush holder assembly
12. Rear housing
13. Through bolt
14. Lever plate

    Specification Starter ItemSpecificationRated voltage12 V, 1.7 kWThe number of pinion teeth12Performance[No-load, 11.5 V]AmpereMax.85 ASpeedMin. 2,550 rpm
