Kia Cadenza: Light bulbs / License plate lamp (Bulb type) bulb replacement

Kia Cadenza YG 2016-2024 Owners Manual / Maintenance / Light bulbs / License plate lamp (Bulb type) bulb replacement

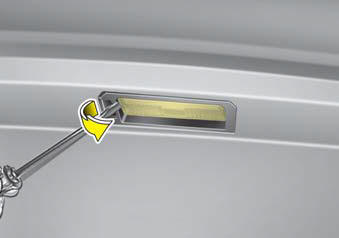

1. Using a flat-blade screwdriver, gently pry the lamp assembly from interior.

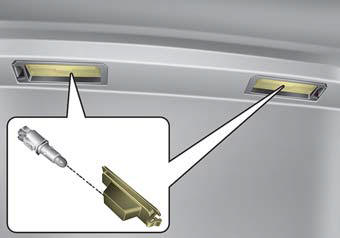

2. Remove the bulb by pulling it straight out.

3. Install a new bulb in the socket.

4. Install the lamp assembly to interior.

CAUTION

Be careful not to dirty or damage the lens, lens tab, and plastic housings.

High mounted stop lamp (LED type) bulb replacement

If the high mounted stop lamp (LED type) (1) does not operate, have the vehicle checked by an authorized Kia dealer. The LED lamp cannot be replaced as a single component because it is an ...

Map lamp (LED type) bulb replacement

If the map lamp (LED type) (1) does ot operate, have the vehicle checked by an authorized Kia dealer. The LED lamp cannot be replaced as a single component because it is an integrated unit. ...
