Kia Cadenza: Light bulbs / Map lamp (LED type) bulb replacement

Kia Cadenza YG 2016-2025 Owners Manual / Maintenance / Light bulbs / Map lamp (LED type) bulb replacement

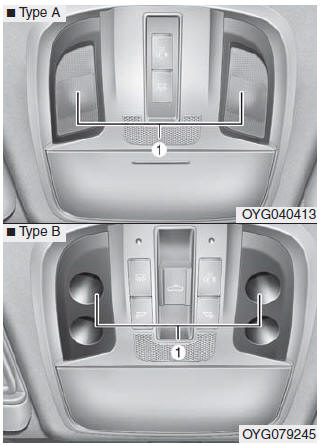

If the map lamp (LED type) (1) does ot operate, have the vehicle checked by an authorized Kia dealer.

The LED lamp cannot be replaced as a single component because it is an integrated unit. The LED lamp has to be replaced with the unit.

A skilled technician should check or repair the map lamp (LED type), for it may damage related parts of the vehicle.
